Remove/Install Emergency Tensioning Retractor - AR91.40-P-1011GQ

MODEL 166, 292

with CODE 494 (US version)

Shown on model 166.0 with code 494 (USA version) on left front seat

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Notes on performing repair, body work and welding on vehicles with airbags and RTE units		AH91.00-P-0002-01M
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Move seat all the way forwards
2	Disconnect battery ground line		AR54.10-P-0003GZ

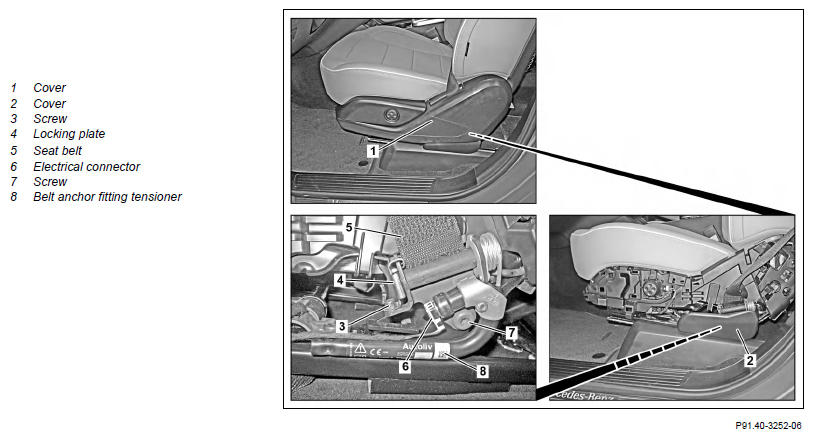

3	Remove trim (1)		AR91.10-P-1200GQ
4	Unclip cover (2) and remove
5	Unscrew bolt (3)	Bolt, locking plate on belt end fitting/tensioner	*BA91.40-P-1002-01R
6	Remove locking plate (4)
7	Remove seat belt (5) toward front	: Do not twist seat belt (5).
8	Disconnect electrical connector (6)	: Make sure that the electrical line is routed and secured correctly.
9	Remove screw/bolt (7) and remove belt anchor fitting tensioner (8)	: If the belt anchor fitting tensioner (8) is replaced, the defective belt anchor fitting tensioner (8) has to be disposed of correctly. Bolt, belt end fitting/tensioner on front seat	*BA91.40-P-1001-01R
10	Install in the reverse order
	Check
12	Check restraint system with diagnostic system	When replacing the belt anchor fitting tensioner (8).	AD00.00-P-2000-04A
