Remove/Install Backrest Lumbar Support Switch - AR91.25-P-1435GZ
MODEL 164, 251 as of model year 2009
MODEL 166

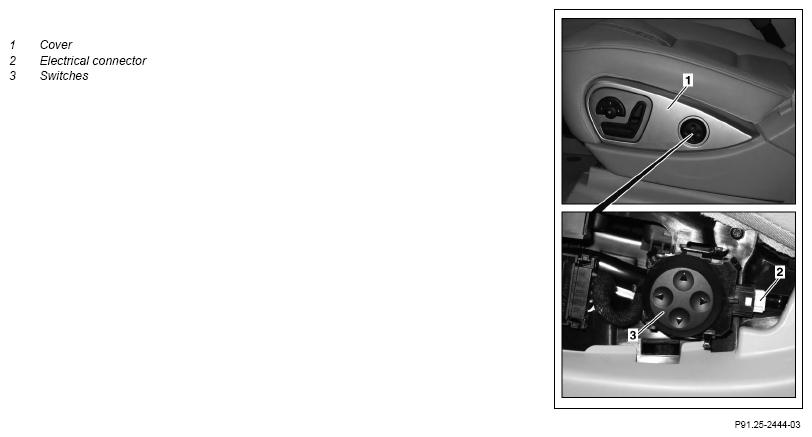

Shown on model 164
  |
Remove/install |
|
|
| 1 |
Unclip cover (1) |
|
|
| 2 |
Unclip switch (3) |
|
|
| 3 |
Disconnect electrical connector (2) |
|
|
| 4 |
Install in the reverse order |
|
|
