Remove/Install Airbag Control Unit - AR91.60-P-0615GQ

MODEL 166, 292

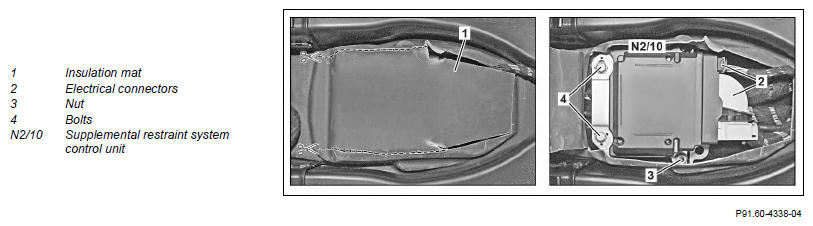

Illustration shows model 166.024

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Switch on ignition and store transmitter key outside of transmission range (min. 2 m)
2	Disconnect battery ground line		AR54.10-P-0003GZ
3	Remove center console		AR68.20-P-2000GQ
4	Cut insulation mat (1) as shown
5	Release and disconnect electrical connections (2)
6	Unscrew nut (3)	Nut, control unit to center console	*BA91.60-P-1002-01H
7	Remove bolts (4)	Screw/bolt, control unit to center console	*BA91.60-P-1020-01H
8	Remove supplemental restraint system control unit (N2/10)
9	Install in the reverse order
	Initial startup
10	Perform SCN coding of supplemental restraint system control unit (N2/10)	When replacing the supplemental restraint system control unit (N2/10).	AR54.21-P-0015X
11	Perform initial startup of supplemental restraint system control unit (N2/10)	When replacing the supplemental restraint system control unit (N2/10).
12	Check and erase vehicle fault memory using the diagnostic system	When replacing the supplemental restraint system control unit (N2/10).	AD00.00-P-2000-04A

AIRBAG

Number	Designation		Model 166	Model 292
BA91.60-P-1002-01H	Nut, control unit to center console	Nm	10	10

AIRBAG

Number	Designation		Model 166	Model 292
BA91.60-P-1020-01H	Screw/bolt, control unit to center console	Nm	10	10
