Remove/Install Air Pump For Multicontour Seat - AR91.25-P-1430GQC
MODEL 166 as of model year 2016
with CODE 399 (Multicontour front seats with massage function)
MODEL 292
with CODE 399 (Multicontour front seats with massage function)

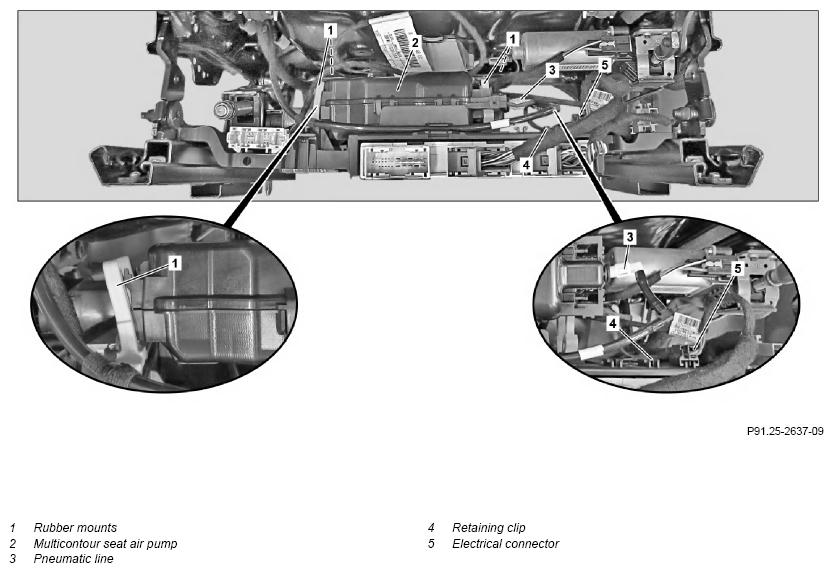

Shown on removed seat
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Move left/right front seat all the way back and to the topmost position | ||
| 3 | Unhook rubber brackets (1) from multicontour seat air pump (2) | ||
| 4 | Remove multicontour seat air pump (2) from rubber brackets (1) | ||
| 5 | Detach pneumatic line (3) | ||
| 6 | Disconnect electrical connector (5) | ||
| 7 | Unclip retaining clip (4) | ||
| 8 | Remove multicontour seat air pump (2) | ||
| 9 | Install in the reverse order |
