Remove, Replace And Install Rear Center Seat Belt - AR91.40-P-0683GQ

MODEL 166, 292

	Risk of injury  . Injury may result when the tension in the spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
	Remove/install

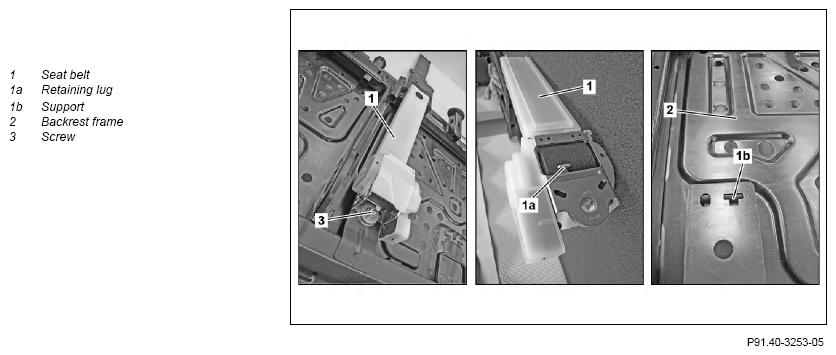

1.1	Remove cover from left backrest	Model 166 Remove cover for backrest with padding from backrest frame (2).	AR91.18-P-1874GQ
1.2	Remove cover from rear backrest	Model 292 Remove cover for backrest with padding from backrest frame (2).	AR91.12-P-1800GQC
2	Unscrew screw/bolt (3) from backrest frame (2)	Screw/bolt, belt retractor to rear seat	*BA91.40-P-1009-01R
3	Pull seat belt (1) upwards out of backrest frame (2) and remove	The retaining lug (1a) must be correctly seated in the mount (1b) for the backrest frame (2)! Damage can otherwise occur.
4	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 166	Model 292
BA91.40-P-1009-01R	Screw/bolt, belt retractor to rear seat	Nm	35	35
