Weight Sensing System Control Unit, Basic Function - GF91.60-P-9891A

MODEL ALL (CAR)

with CODE U10 (Automatic seat occupancy recognition and child seat recognition)

Overview

This document contains the following information:

• Location
• Task

Location

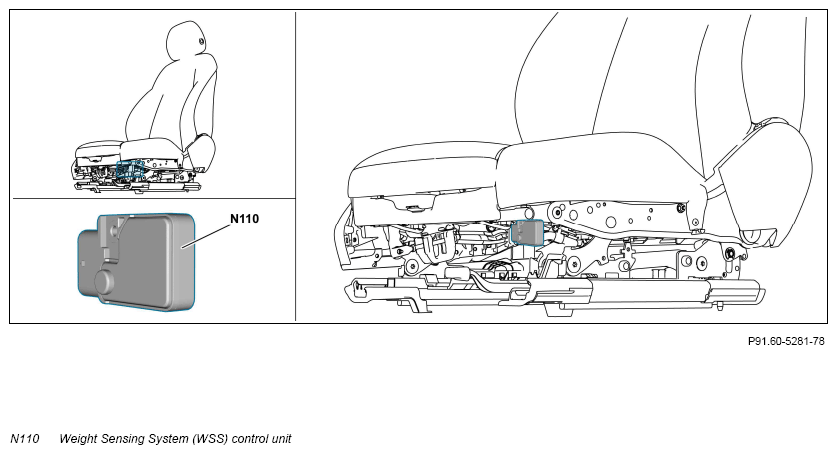

The WSS control unit is located at the bottom of the seat frame of the front passenger seat.

Task

The WSS control unit determines the weight applied to the front passenger seat by means of a pressure measurement in a seat mat filled with silicone. The WSS control unit sends information on the weight classification over the seat occupancy LIN (LIN E2) to the supplemental restraint system control unit (N2/10).
