Supplemental Restraint System Function - GF91.60-P-0003GN

MODEL 166 as of model year 2016

MODEL 292

Function requirements, general

• The Supplemental Restraint System must be programmed to the vehicle (left or right-hand drive vehicle, equipment programming and configuration parameters)
• Circuit 15R ON

The electronic ignition lock control unit sends the status of circuit 15 via chassis CAN 1 to the Supplemental Restraint System control unit.

After circuit 15R is switched off, parts of the Supplemental Restraint System remain active for a certain run-on time.

Energy reserve: The supplemental restraint system control unit provides an energy reserve for at least 300 ms after a battery disconnection.

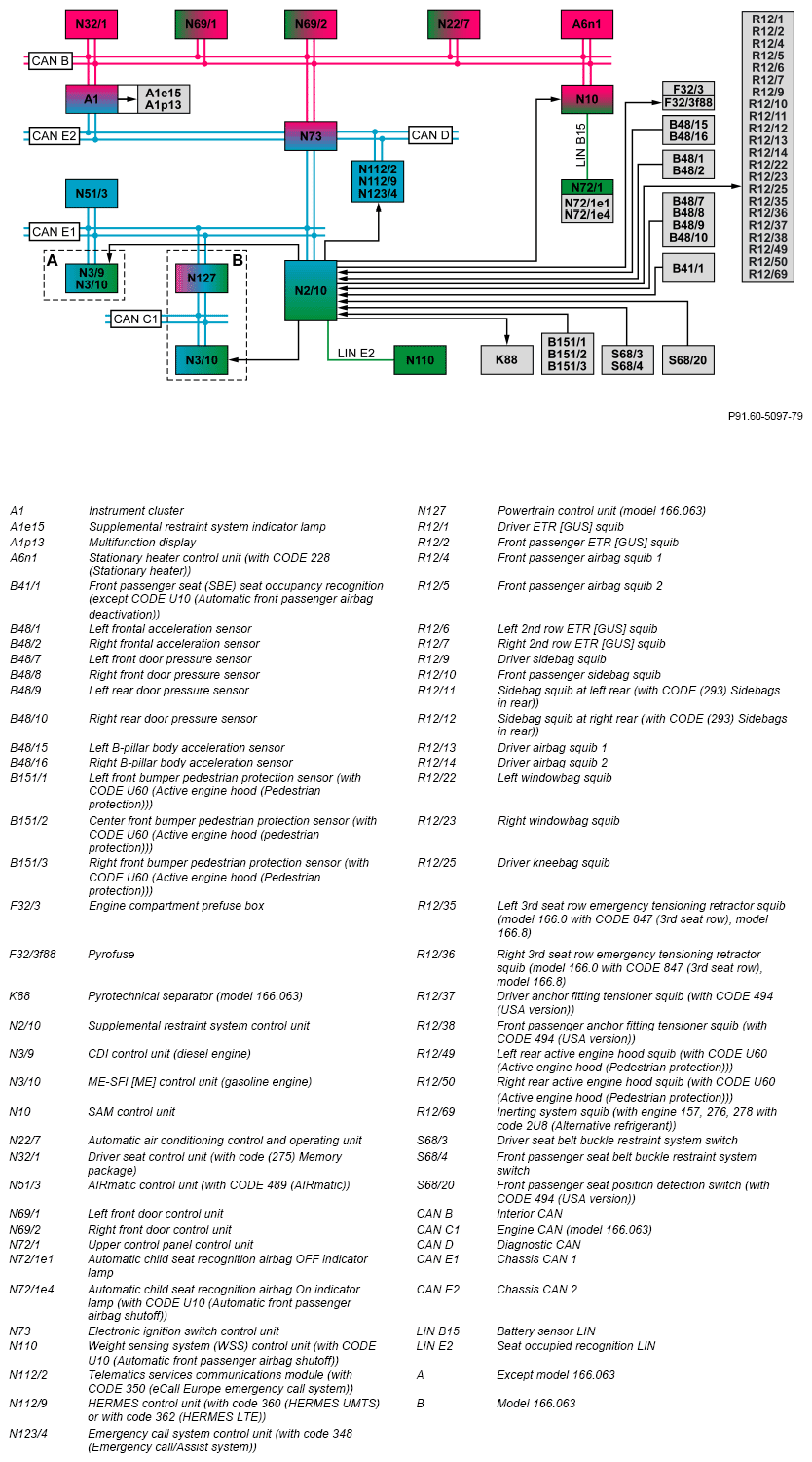

Supplemental restraint system, general information

The Supplemental Restraint System is intended for occupant protection and with CODE U60 (Active engine hood (pedestrian protection)) also for pedestrian protection.

Belt lock: The belt is prevented from extending in certain situations, irrespective of the status of the Supplemental Restraint System.

The following subfunctions are described in separate documents:

• Passenger-side seat occupied recognition function
• Supplemental restraint system deployment function
• Pedestrian protection, function (with CODE U60 (Active engine hood (pedestrian protection)))
