Seat Heater Control Unit, Basic Function - GF91.30-P-9890A

MODEL ALL (CAR)

with CODE 902 (Seat heater Plus for driver and front passenger)

General

The seat heating control unit performs the following tasks:

• Control of seat heating

Variants of the seat heating control unit:

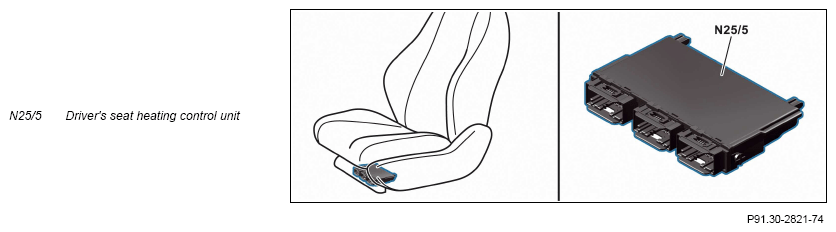

• Driver seat heater control unit (N25/5)
• Front passenger seat heater control unit (N25/4)

Location

The driver's seat/front passenger seat heating control unit is located at the bottom of the seat frame base of each seat.

Function requirement

• Circuit 30t ON
