Seat Adjustment, Basic Function - GF91.00-P-9901A

MODEL ALL (CAR)

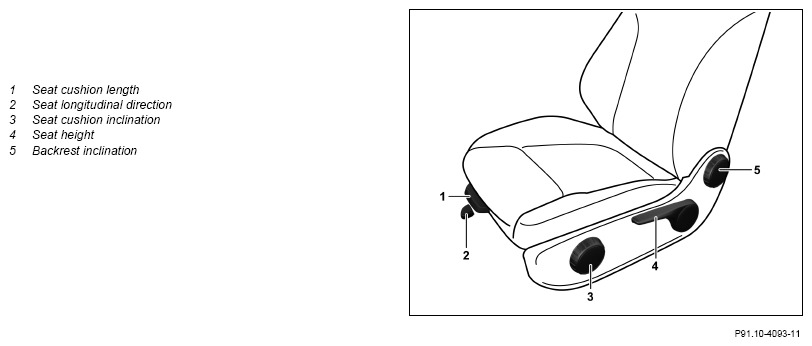

Mechanical seat adjustment on driver's seat (shown on vehicle with Seat Comfort Package)

Overview:

This document contains information on:

• General
• Mechanical seat adjustment function

General

The seat adjustment is used to adapt the seat to the body size of the respective vehicle occupants. A correct seat position ensures seat comfort and safety for the vehicle occupants.

The seat adjustment is conducted mechanically or electrically depending on the model and equipment installed. Depending on the equipment installed in the vehicle, some of the adjustment options in the electrical seat adjustment may be mechanical.

Depending on the equipment involved, the seat adjustment also includes components that enhance comfort, such as, e.g. massage function or lumbar support adjustment, for individual adaptation of seat backrest padding for vehicle occupants.

Mechanical seat adjustment function

The mechanical seat adjustment is adjusted by lever or handwheels. The following seat adjustments can be conducted mechanically:

• Seat longitudinal direction
• Seat cushion length
• Seat cushion inclination
• Seat height
• Backrest inclination
• Head restraint height
• Head restraint inclination

	Further basic functions
	Lumbar support adjustment, basic function	Vehicles with code U22 (4-way lumbar support)	GF91.00-P-9902A
	Front seat electrical seat adjustment, basic function	Model 177 with code 241 (Memory switch for electrically adjustable left front passenger seat), with code 242 (Electrically adjustable front passenger seat with memory function) or with code 275 (Electrically adjustable driver's seat with memory function)	GF91.10-P-9900A
	Memory function, basic function	Vehicles with code 241 (Memory switch for electrically adjustable left front passenger seat), with code 242 (Electrically adjustable front passenger seat with memory function) or with code 275 (Electrically adjustable driver's seat with memory function)	GF91.10-P-9901A
	Multicontour seat, basic function	Vehicles with code 399 (Front multicontour seats with massage function) or with code 409 (Left/right front multicontour seats)	GF91.25-P-9900A
