Pedestrian Protection Sensor, Basic Function - GF91.60-P-2016A

MODEL ALL (CAR) with CODE U60 (Active Bonnet (Pedestrian protection))

Overview

This document contains the following information:

• Location
• Task

Location

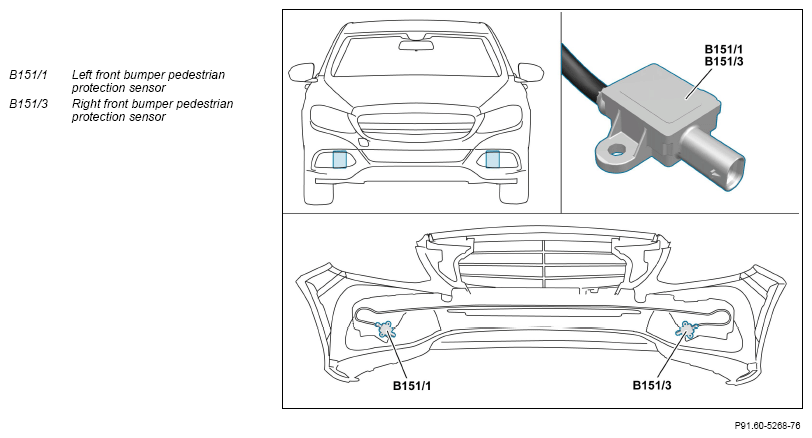

The pedestrian protection sensors are found in the front bumper to the left and right.

Task

The pedestrian protection sensors are connected to each other via a hose. They record the pressure in this hose. The pressure increases e.g. when the bumper is pressed in. The SRS control unit (N2/10) evaluates the data of the pedestrian protection sensors.
