Remove/Install Rear Speaker Cover - AR68.30-P-3445GZ

MODEL 164, 166.0 with CODE 810 (Sound system)

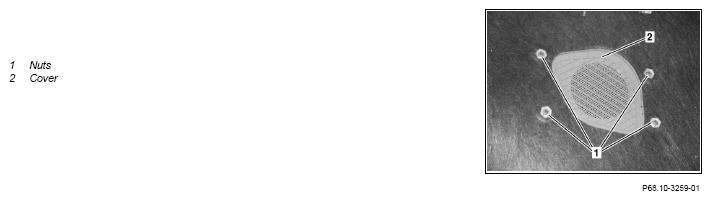

G12080036
REMOVINGINSTALLING Remove/install
1 Remove headliner MODEL 166.0 (except 164)
with CODE 810 (Sound system) without CODE Z05 (B5 armoring on special protection version)
AR68.30-P-4300GQ
    MODEL 164
with CODE 810 (Sound system)
AR68.30-P-4300GZ
2.1 Unscrew nuts (1) MODEL 164
with CODE 810 (Sound system)

2.2 Remove retaining clips MODEL 166.0
with CODE 810 (Sound system)

3 Remove cover (2)
4 Install in the reverse order
