Remove/Install Rear Center Console Switch Module - AR68.20-P-2210GQ

MODEL 166

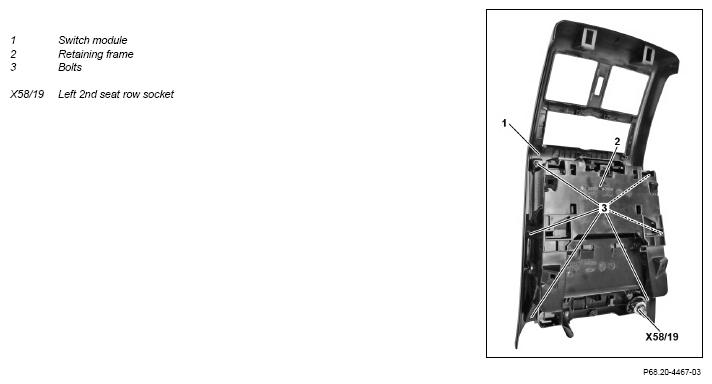

Shown on vehicle with code (864) Rear entertainment system

	Remove/install
1	Remove control and operating unit		AR83.40-P-6350GQA
2	Remove left 2nd seat row socket (X58/19)		Fig 1
3	Remove right 2nd seat row socket (X58/20)	Vehicles with code (864) Rear entertainment system	Fig 1
4	Remove bolt (3)	: Loosely screw all bolts (3) into switch module (1) and then tighten.
5	Remove retaining frame (2) from switch module (1)	: Ensure that retaining frame (2) is seated correctly on switch module (1).
6	Install in the reverse order

Fig 1: Identifying Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
