Remove/Install Lock Cylinder On Glove Compartment Lock - AR68.10-P-1250W

MODEL 166, 172.4, 204, 205, 207, 212, 213, 218, 238, 253, 292

Shown on model 172.4

Shown on model 172.4

	Remove

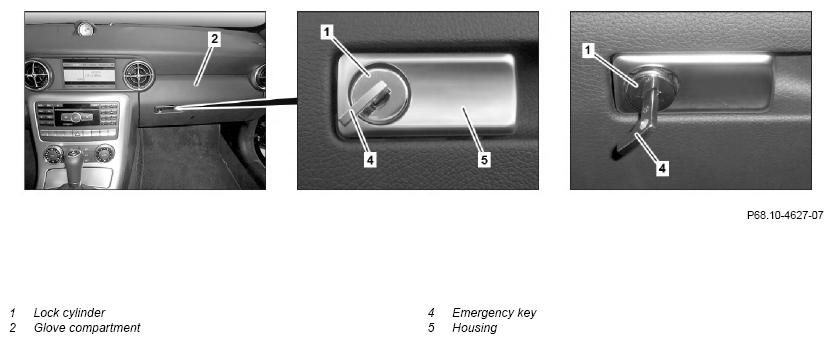

1	Insert emergency key (4) into lock cylinder (1) and turn approx. 45° as shown
2	Pull lock cylinder (1) with emergency key (4) out of housing (5)	Hold housing (5).
	Check

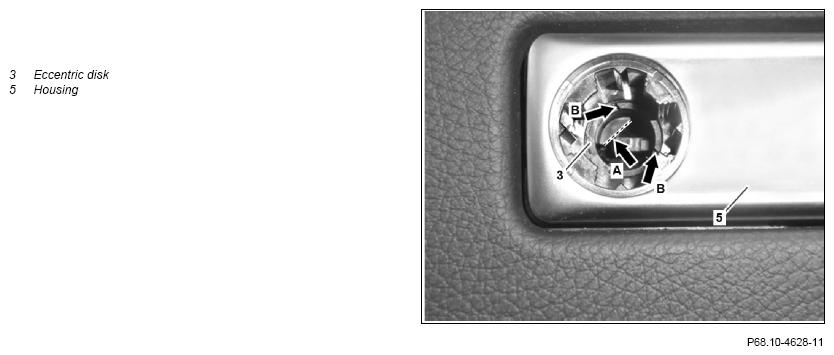

3	Check position of edge (arrow A) on eccentric disk (3) in housing (5)	The edge (arrow A) of the eccentric disc (3) must be at approx. 45° as shown in the figure. Model 166.### 2#, 172.4## 2#, 204.### 2#, 205.### 2#, 207.### 2#, 212.### 2#, 213.### 2#, 218.### 2#, 238.### 2#, 253.### 2#, 292.### 2# The positions of the edges (arrows A and B) are turned 180°.
4	Correct position of eccentric disk (3) at edges (arrow B)	If required. Do not press to eccentric disk (3) in axial direction. Otherwise the eccentric disk (3) can be pressed off of the housing (5). Turn eccentric disk (3) at edges (arrow B).
	Install
5	Insert lock cylinder (1) into housing (5) in 45° position using emergency key (4)	Lock cylinder (1) should arrest noticeably.
6	Pull emergency key (4) out of lock cylinder (1)
