Remove/Install Front Beverage Holder - AR68.20-P-2240GQ

MODEL 166, 292

	Remove/install

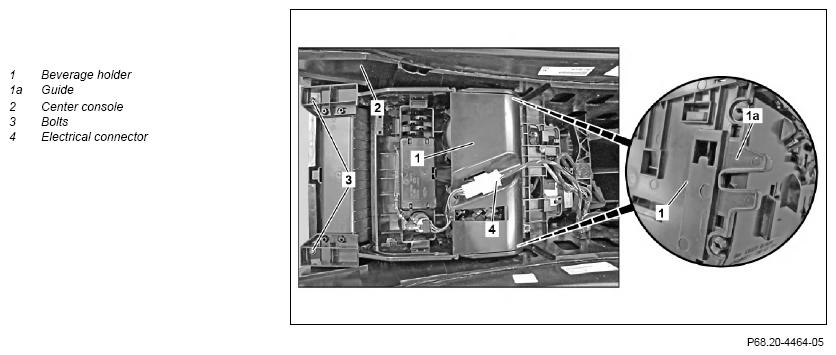

1	Remove center console (2)		AR68.20-P-2000GQ
2	Disconnect electrical connection (4)
3	Remove bolts (3)
4	Pull beverage holder (1) toward rear out of center console (2) and remove	Ensure that guides (1a) are seated correctly in center console (2).
5	Install in the reverse order
