Retrofit Mounting Console For Lower Safety Net - AZ68.50-P-0009-01GQ

MODEL 166.0

CARGO RETAINERS

Number Designation Model 166
BA68.50-P-1002-03F Screw/bolt, tie-down eye to body/trunk floor Nm 24
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding, replaced by A 000 986 28 00 1K zinc dust paint A 000 986 34 42

IMPORTANT The following work procedure is described on the left side of the vehicle. Install lower mounting console on right side of vehicle in same manner.

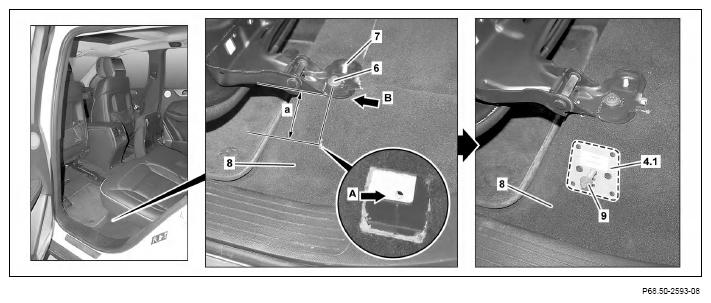

G12080086
  1. Determine position of threaded hole (arrow A) according to dimension (a).

    IMPORTANT Looking toward the front of the vehicle, the threaded hole (arrow A) is at the same height as the bolt (6).

    Measure dimension (a) at edge (arrow B) of hinge (7) vertically downward.

    IMPORTANTDimensions:

    a = 62 mm

  2. Carefully punch floor covering (8) with pointed punch in area of determined position and determine actual position for threaded hole (arrow A).

    IMPORTANT If applicable, punch floor covering (8) with punch several times in area of determined position until threaded hole (arrow A) is found.

  3. Enlarge hole in floor covering (8) above threaded hole (arrow) to approx. 8 mm.
  4. Position mounting plate (4.1) on threaded hole (arrow A) as shown and fasten with bolt (9).

    IMPORTANT Use M8x25mm commercially available bolt (9).

  5. Carefully cut out floor covering (8) around mounting plate (4.1) (broken line) with cutter.
  6. Unscrew bolt (9) and remove mounting plate (4.1) as well as piece of floor covering (8) below.

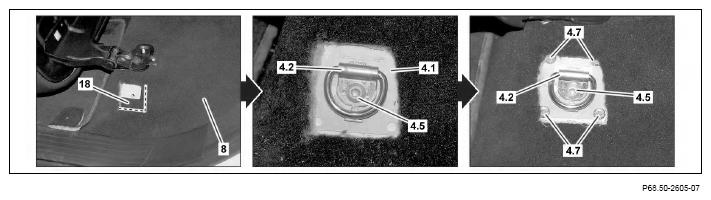

    G12080087
  7. Detach plastic (18) according to cutout in floor covering (8) (broken line) with suitable tool and remove.
  8. Position mounting plate (4.1) with tie-down eye (4.2) as shown and fix in place with bolt (4.5).

    IMPORTANT Ensure that lower guide on tie-down eye (4.2) is positioned in body opening.

  9. Drill ø 6.5 mm rivet holes to match holes in the mounting plate (4.1).
  10. Unscrew bolt (4.5) and remove tie-down eye (4.2) as well as mounting plate (4.1).
  11. Deburr rivet holes.
  12. Remove drilling shavings with wet/dry vacuum cleaner.
  13. Coat rivet holes with zinc dust paint.
  14. Position mounting plate (4.1) with tie-down eye (4.2) and tighten with bolt (4.5).
  15. Fasten mounting plate (4.1) with rivet (4.7).
  16. Unscrew bolt (4.5) and remove tie-down eye (4.2).
  17. Align paneling (4.4) above mounting plate (4.1).

    IMPORTANT The lower cutout in the paneling (4.4) should be positioned precisely in the body opening (arrow D).

  18. Tighten tie-down eye (4.2) with washer (4.3) and bolt (4.5) TORQUE SPECIFICATION

    NOTES Ensure that lower guide (arrow C) on tie-down eye (4.2) is seated in body opening (arrow D).

    If anchoring lug (4.2) is not positioned correctly, the paneling (4.4) can be damaged.

  19. Fold up cap (4.6) and lock.

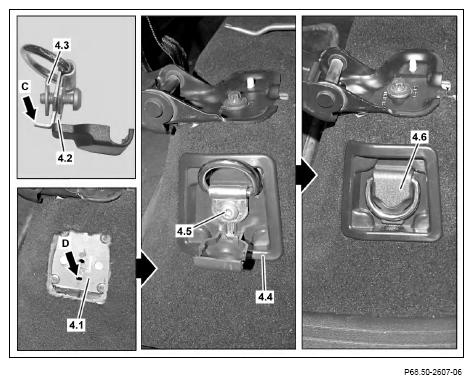

G12080088
