Check First Aid Kit - AP68.00-P-6850EW
MODEL 117, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245, 246, 251, 253, 257, 290, 292, 463

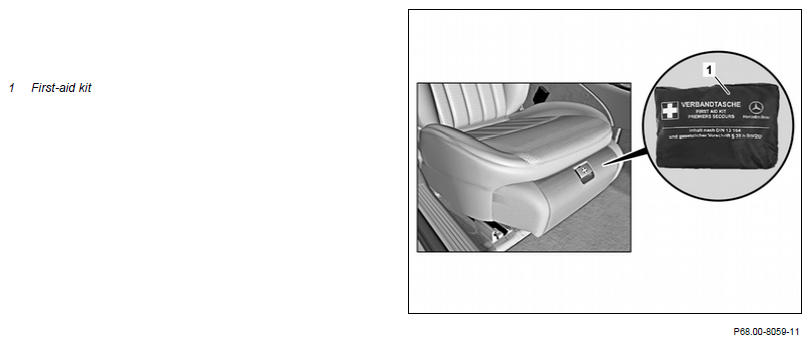

First aid kit in front passenger seat shown on model 211, valid for model 211, 219, 230

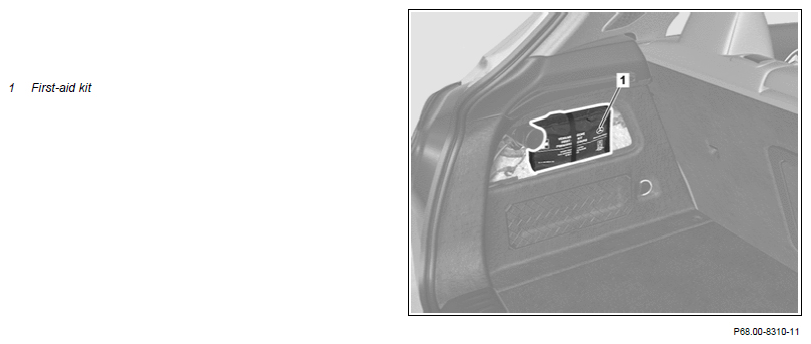

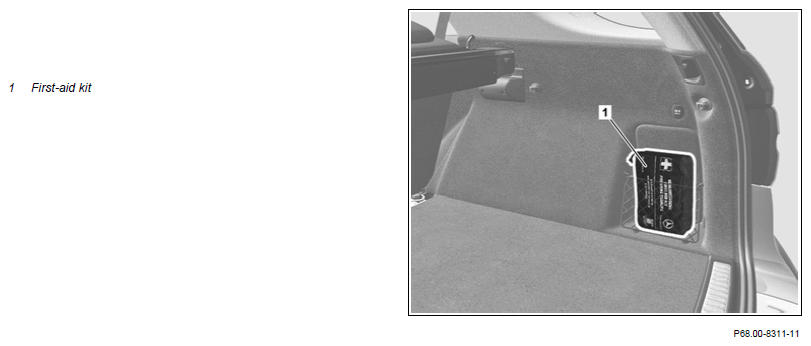

First-aid kit behind side panel shown at left on model 176.0, valid for model 117, 156, 164, 169, 176, 197, 203, 218.9, 245
First-aid kit (soft sided) in stowage net shown at left on model 205, valid for models 167, 190, 204.0/3/9, 205, 209.3, 213, 238

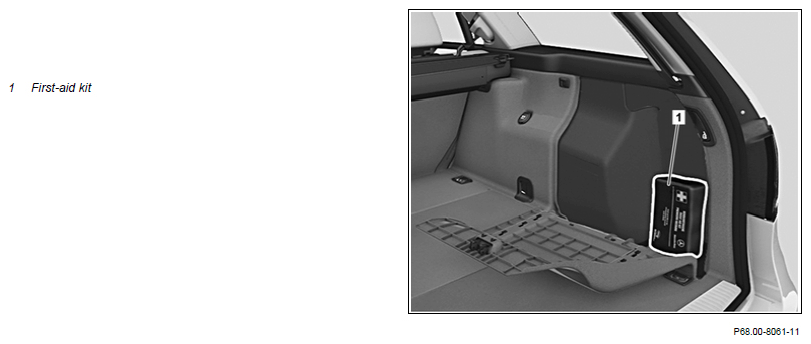

First-aid kit behind side panel shown at right on model 212.0, valid for model 204.2, 212.0, 218.3, 242, 246

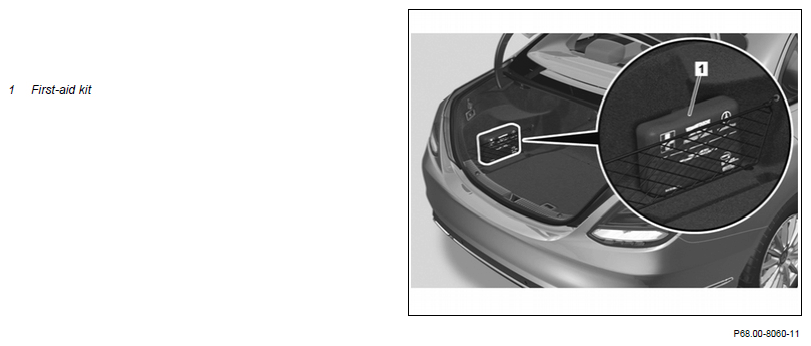

First-aid kit in stowage net shown at right on model 166.0, valid for model 166, 207, 216, 217, 221, 222

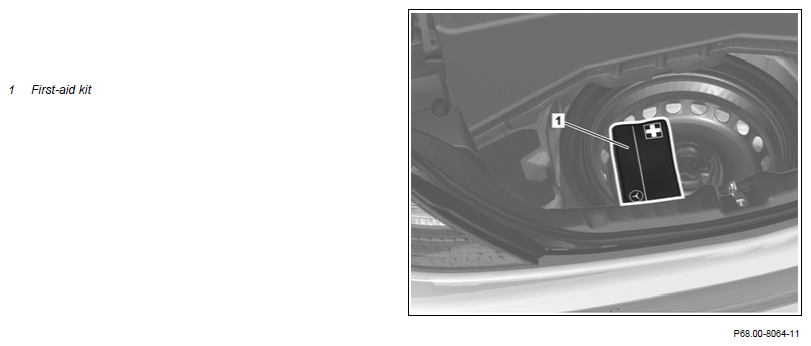

First-aid kit (soft sided) in trunk recess shown on model 172, valid for model 171, 172, 177, 209.4, 231, 251, 253, 257, 290, 292

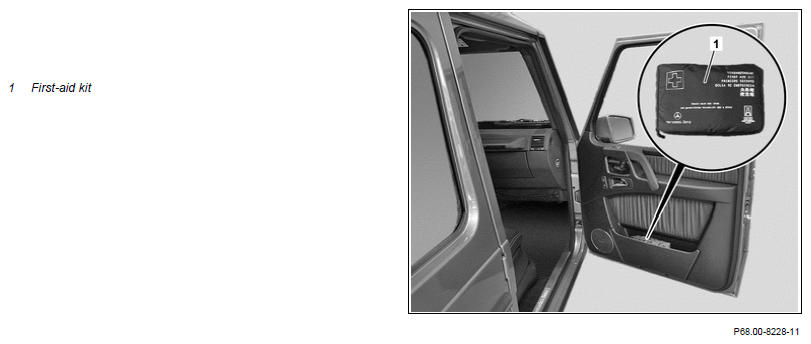

First-aid kit in front passenger door, shown on model 463.348, valid for model 463
| Remove | |||
| 1 | Remove first-aid kit (soft sided) (1). | ||
| Check | |||

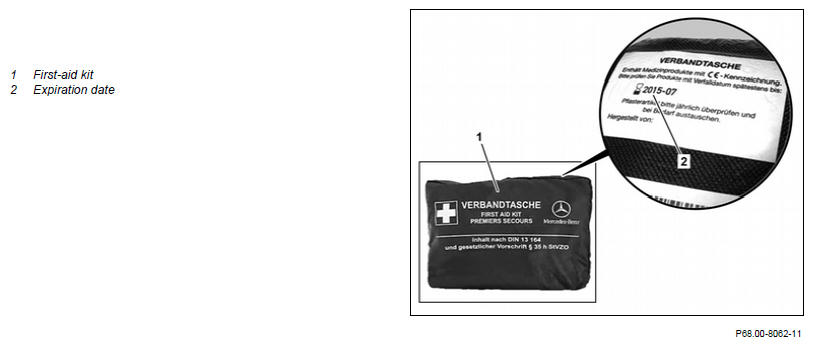

| 2 | Check expiration date (2). | If the expiration date (2) has been reached or exceeded or is reached or exceeded within the next service interval. ↓ Replace first-aid kit (soft sided) (1). |
|
| Install | |||
| 3 | Insert first-aid kit (soft sided) (1). |
