Emergency Release Of Charging Cable Plug At Charger Feed Socket - AR54.10-P-5111GQA

MODEL 166.063

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Emergency release

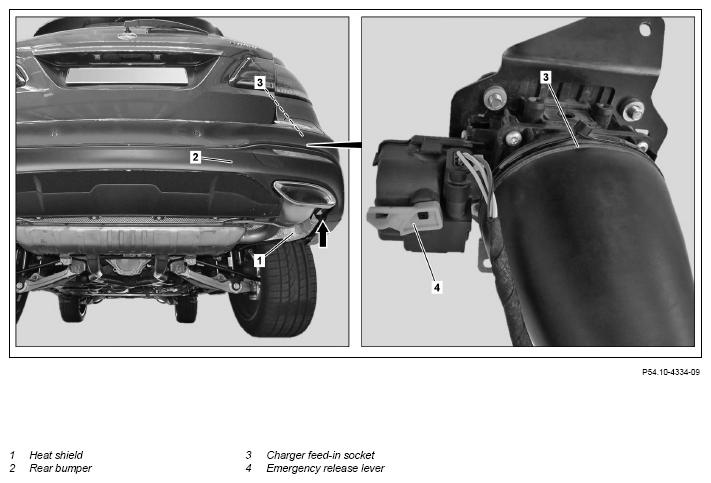

1	Reach in between heat shield (1) and rear bumper (2) at arrow and feel for emergency release lever (4)	The emergency release lever (4) is on the left side of the charger feed-in socket (3).
2	Turn emergency release lever (4) by 90° counterclockwise	By turning the emergency release lever (4), the turntable of the mechanical emergency release on the actuator motor of the electrical release is twisted and the charger cable plug is released.
