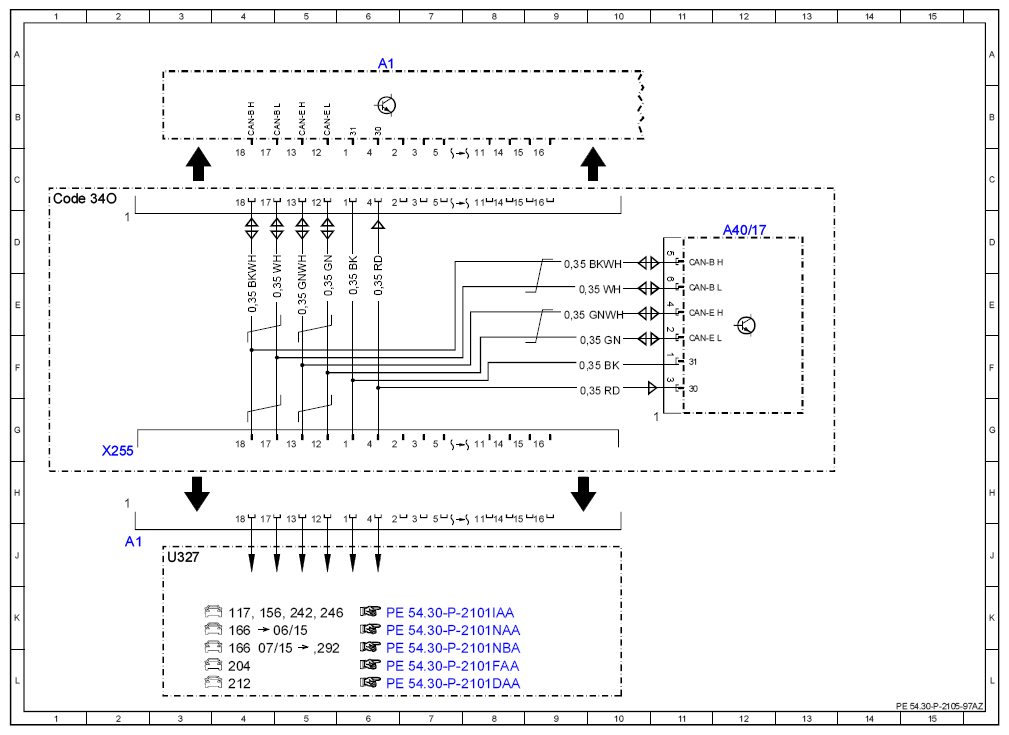

Wiring Diagram Of Instrument Cluster (IC) Control Unit With Retrofitted Head-Up Display Control Unit - PE54.30-P-2105-97AZ
MODEL 117, 156, 204, 212, 242, 246 with CODE 34O (Frontal display accessories (head-up display)) Control unit A40/17
MODEL 166, 292 with CODE 34O (Frontal display accessories (head-up display)) except CODE E75 (Head-up display) Control unit A40/17
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 6A |
| A1 | Instrument cluster | 2J |
| A40/17 | Head-up display, retrofit | 12D |
| Code 34O | Frontal display accessory (head-up display) | 1C |
| Code E75 | Head-up display | - |
| U327 | The retrofit is not described in the model series-specific wiring diagrams | 3J |
| X255 | Instrument cluster and head-up display electrical connector | 2G |
