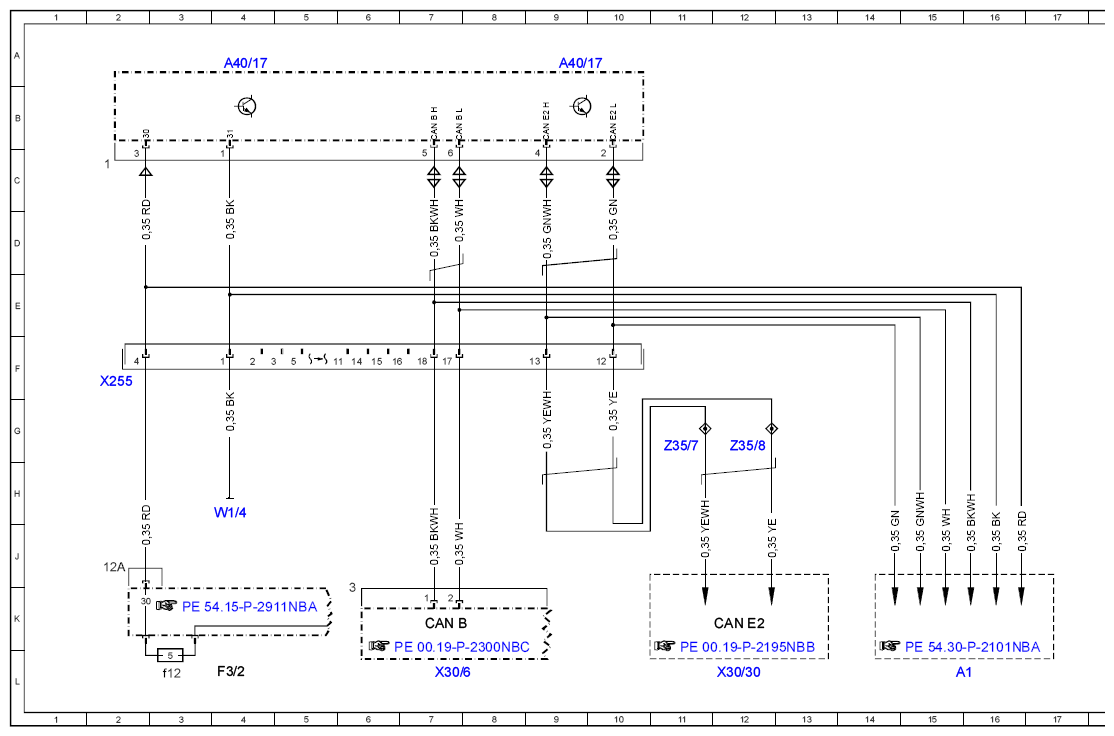

Wiring Diagram For Head-Up Display Control Unit - PE54.30-P-2104-97NBA
MODEL 166 as of model year 2016 with CODE 34O (Frontal display accessories (head-up display)) with CODE E75 (Head-up display) Control unit A40/17
MODEL 292 with CODE 34O (Frontal display accessories (head-up display)) with CODE E75 (Head-up display) Control unit A40/17
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| A1 | Instrument cluster | 15L |
| A40/17 | Head-up display, retrofit | 4A |
| A40/17 | Head-up display, retrofit | 9A |
| CAN B | Interior CAN | 7K |
| CAN E2 | Chassis CAN 2 | 12K |
| F3/2 | Cockpit circuit 30 fuse box | 4L |
| F3/2f12 | Fuse 12 | 3L |
| W1/4 | Cockpit ground point | 4H |
| X255 | Instrument cluster and head-up display electrical connector | 2F |
| X30/30 | Vehicle floor chassis CAN E2 potential distributor electrical connector | 12L |
| X30/6 | Cockpit potential distributor electrical connector (CAN) | 7L |
| Z35/7 | CAN bus high cockpit bus node | 11G |
| Z35/8 | CAN bus low cockpit bus node | 12G |
