Replace Rear Fender Complete - Ar63.50-P-1401LWX

Model 253.3

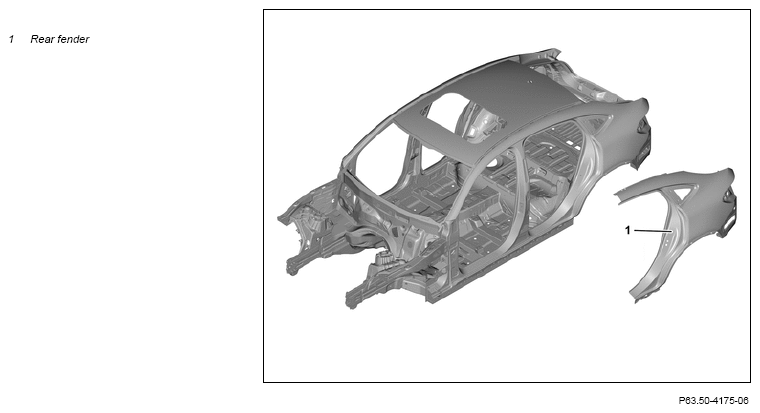

Fig 1: Rear Fender And Locations (Model 253.3)
G12939171CAUTIONREMOVINGIMPORTANTREFER TO SPECIAL TOOLSIMPORTANTIMPORTANTINSTALLINGREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSIMPORTANTSPECIAL TOOLIMPORTANTIMPORTANTIMPORTANTIMPORTANTCourtesy of MERCEDES-BENZ USA
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. See AS00.00-Z-0010-01A .
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
See AS00.00-Z-0017-01A .
  Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. AS00.00-Z-0035-01A
  Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
See AS47.00-Z-0001-01A .
  General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system   See AH00.00-Z-0300-01A .
  Information on preventing damage to electronic components due to electrostatic discharge   See AH54.00-P-0001-01A .
  Notes on battery   See AH54.10-P-0001-01A .
  General information on body repair   See AH60.00-N-0001-01A .
  Pretreatment of bonding surfaces   See AH60.00-P-0008-01SX .
  Notes on acoustic foam and structural foam in the vehicle   See AH60.00-P-0039-01LWG .
  General information on MB materials   See AH98.00-P-9409-03A .
REMOVING Remove
1 Remove detachable parts in area to be repaired
2 Cover all detachable parts remaining on vehicle with spark protection blankets IMPORTANT When replacing the right rear fender (1), the standard tank lock must be installed and the filler neck covered with a welding protection blanket.
3 Separate rear fender (1)   See AR63.50-P-1401-01LWX .
REFER TO SPECIAL TOOLS 000 588 00 84 00 Heat gun   See WS54.00-P-0049B .
IMPORTANTCommercially available devices/tools
Round wire brush
Body power jigsaw
Spot weld milling machine
Wet/dry vacuum cleaner
1K-zinc dust paint
See *BR00.45-Z-1056-07A .
Primer stick See *BR00.45-Z-1012-07A .
4 Prepare rear fender (1)   See AR63.50-P-1401-02LWX .
    IMPORTANTCommercially available devices/tools
Round wire brush
Body power jigsaw
Spot weld milling machine
1K-zinc dust paint
See *BR00.45-Z-1056-07A .
INSTALLING Install
  The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld area. Use air extraction system, splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard See AS00.00-Z-0007-01A .
  Measures for preventing damage to components when performing electric welding and soldering work   See AH60.00-P-0001-02A .
  General information on riveting   See AH60.00-P-0003-01N .
5 Install rear fender (1)   See AR63.50-P-1401-03LWX .
REFER TO SPECIAL TOOLS 000 588 01 84 00 Welder   See WS60.00-P-0021K .
REFER TO SPECIAL TOOLS 000 588 02 84 00 Welder   See WS60.00-P-0022K .
    Gap dimensions on hoods, doors and lids See AR60.00-P-0700-01LW .
    IMPORTANTCommercially available devices/tools
Round wire brush
Manual temporary fastener 6.35 mm
Blind rivet gun (minimum pull-off force 19 kN)
Wet/dry vacuum cleaner
1K-zinc dust paint
See *BR00.45-Z-1056-07A .
    Rear door to side piece See *BE60.00-P-1008-01FA .
    Outside of tail lamp to inside of tail lamp See *BE60.00-P-1014-01FA .
    Outer tail lamp to sidewall, bottom See *BE60.00-P-1019-01FA .
    Outside of tail lamp to bumper See *BE60.00-P-1020-01FA .
    White sealing compound, 310 ml, DBL 6069.20 See *BR00.45-Z-1003-01A .
    Adhesive kit, body, 2-component adhesive See *BR00.45-Z-1092-02A .
  Blind rivet 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN)   See *BR00.45-Z-1035-13A .
    SPECIAL TOOL Feeler gauge See Figure.
    As an alternative to restoring surfaces with body solder.

Apply basic body filler.
See AR60.00-P-0031-01LWG .
    Parts kit for 2-component adhesive for body See *BR00.45-Z-1162-02A .
    Basic body filler See *BR00.45-Z-1057-07A .
6 Clean welds and sheet metal flanges IMPORTANTCommercially available devices/tools
Round wire brush

7 Remove spark protection blankets
8 Clean repair area IMPORTANTCommercially available devices/tools
Wet/dry vacuum cleaner

9 Prime repair area using primer filler
Notes on paintwork repairs
IMPORTANT Use only primer filler approved by Daimler AG. See AH98.00-P-9408-02A .
10 Seal seam following repairs   See AR97.10-P-4000LW .
11 Paint repair areas and adjacent surfaces
Notes on paintwork repairs
IMPORTANT Use only paints approved by Daimler AG. See AH98.00-P-9408-02A .
12 Add cavity preserving agent   AR97.20-P-1500LW
13 Install all detachable body components in area to be repaired
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.3
BE60.00-P-1008-01FA Rear door to side piece Dimension "I" mm 3, 5 (± 0, 5)
For picture, See AR60.00-P-0700-01LW .
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.3
BE60.00-P-1014-01FA Outside of tail lamp to inside of tail lamp Dimension "T" mm 3, 5 (+1, 5/-1)
For picture, See AR60.00-P-0700-01LW .
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.3
BE60.00-P-1019-01FA Outer tail lamp to sidewall, bottom Dimension "W" mm 1, 0 (+1/-0, 5)
For picture, See AR60.00-P-0700-01LW .
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.3
BE60.00-P-1020-01FA Outside of tail lamp to bumper Dimension "X" mm 2, 0 (± 1)
For picture, See AR60.00-P-0700-01LW .
Fig 2: Feeler Gauge (129 589 03 21 00)
G11129185Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-01A White sealing compound, 310 ml, DBL 6069.20 A 001 989 63 20
BR00.45-Z-1012-07A Primer stick A 000 986 27 50
BR00.45-Z-1035-13A Blind rivet 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) A 000 991 76 32
BR00.45-Z-1056-07A 1K-zinc dust paint A 000 986 28 00
BR00.45-Z-1057-07A Basic body filler A 012 989 29 71
BR00.45-Z-1092-02A Adhesive kit, body, 2-component adhesive A 012 989 17 71
BR00.45-Z-1162-02A Parts kit for 2-component adhesive for body A 012 989 17 71
