Prepare New Rear Fender - Ar63.50-P-1400-03LWS

Model 205.2

Model 253.9

Model 293

The next steps are shown on the left side of the vehicle in model 205.2. This must be similarly performed for damage to the right side of the vehicle.

1. Mark separating points on rear fender (1) and cut (areas A and B).

   Transfer separation points from vehicle.

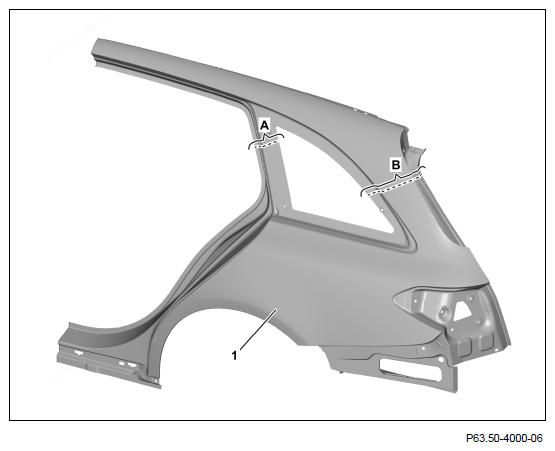

   Fig 1: Rear Fender Installation Preparation Cut Line Locations

   Courtesy of MERCEDES-BENZ USA

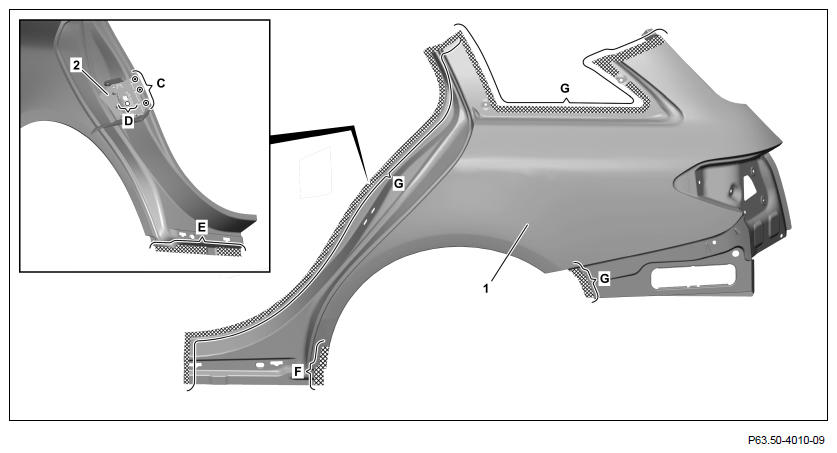

   Fig 2: Lock Striker Bracket Installation Preparation Cut Line Locations

   Courtesy of MERCEDES-BENZ USA
2. Cut out spot welds on lock striker bracket (2) (area C).

   Only if C-pillar is not replaced.

3. Drill out spot weld on lock striker bracket (2) with a diameter of 6.5 mm (area D).

   Only if C-pillar is not replaced.

4. Remove lock striker bracket (2).

   Only if C-pillar is not replaced.

5. 1. 5.1 Model 205.2

      Grind mating surfaces on rear fender (1) down to bare metal in crosshatched areas (areas E and G).

      Sand down spot weld flanges to bare metal on both sides.

   2. 5.2 Model 253.9

      Model 293

      Grind mating surfaces on rear fender (1) down to bare metal in crosshatched areas (areas F and G).

      Sand down spot weld flanges to bare metal on both sides.

6. Remove grinding dust and drill chips.
7. Coat insides of spot weld flanges with zinc dust paint.

   Model 205.2

   Do not coat bonding surfaces with zinc dust paint (area E).

   Otherwise adhesion problems may occur.

   Model 205.2

   Observe pretreatment of bonding surfaces.

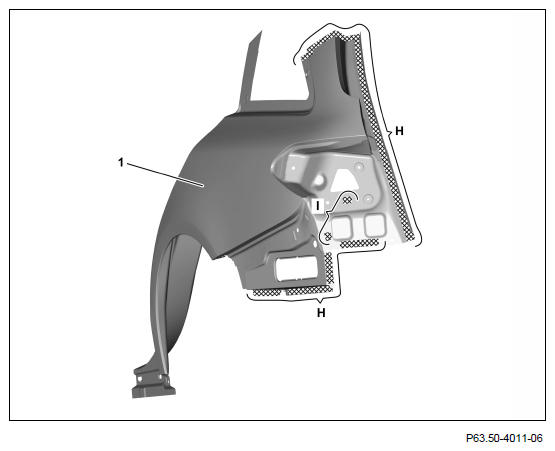

8. Grind mating surfaces on rear fender (1) down to bare metal in crosshatched areas (areas H).

   Sand down spot weld flanges to bare metal on both sides.

9. Model 205.2

   Grind mating surfaces on rear fender (1) down to bare metal in crosshatched areas (areas I).

   Sand down spot weld flanges to bare metal on both sides.

10. Remove grinding dust.
11. Coat insides of spot weld flanges with zinc dust paint.

    Courtesy of MERCEDES-BENZ USA
