Install D-Pillar - Ar63.20-P-2000-03LWX

Model 253.3

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

1. Install D-pillar (1), fit and fix in place.

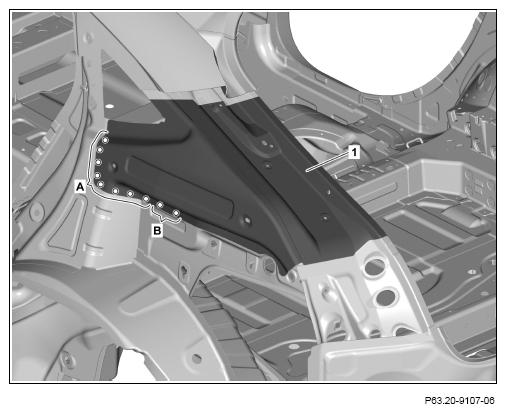

2. Drill rivet holes on D-pillar (1) with Ø 6, 7 mm bit (areas A und B).

   Drill rivet holes from inside through present holes in D-pillar (1) (area A).

3. Remove D-pillar (1).
4. Deburr rivet holes on outer rear longitudinal member (1) and body on both sides.
5. Remove drilling chips.
6. Coat insides of riveted joints with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

7. Install D-pillar (1) and fix in place.

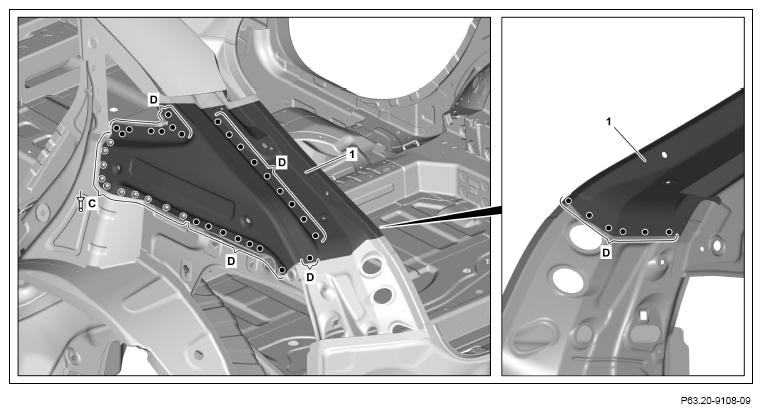

8. Rivet D-pillar (1) with Ø 6.4x12 rivet (area C).

   Clamping range 1.35 to 2.05 mm

9. D-pillar (1) (areas D).
10. D-pillar (1) (areas E).

    Perform inert gas welding at intervals and allow to cool down in between. This reduces heat distortion.

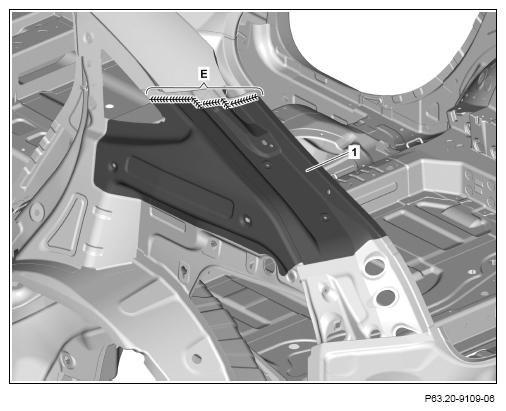

11. Grind inert gas weld on D-pillar (1) down flat (area E).

    Grind down flat only on beaded areas and contact areas of rear fender.

12. Clean weld joints that are no longer accessible after rear fender is installed, and coat with zinc dust paint.
