Install D-Pillar - Ar63.20-P-2000-03LWG

Model 253.9

Model 293

The following operation steps are shown on the left side of the vehicle This must be similarly performed for damage to the right side of the vehicle.

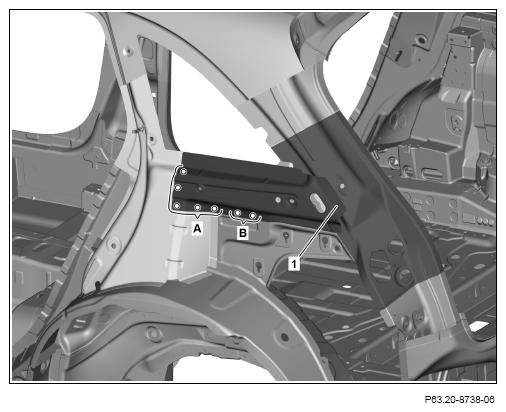

1. Install D-pillar (1) fit and fix in place.
2. Drill rivet holes on D-pillar (1) with Ø 6.7 mm bit (areas A and B).

   Drill rivet holes from inside through present holes in D-pillar (1) (area A).

3. Remove D-pillar (1).
4. Deburr rivet holes on outer rear longitudinal member (1) and body on both sides.
5. Remove drilling chips.
6. Coat insides of riveted joints with zinc dust paint.

   Shown on model 253.9

   Courtesy of MERCEDES-BENZ USA

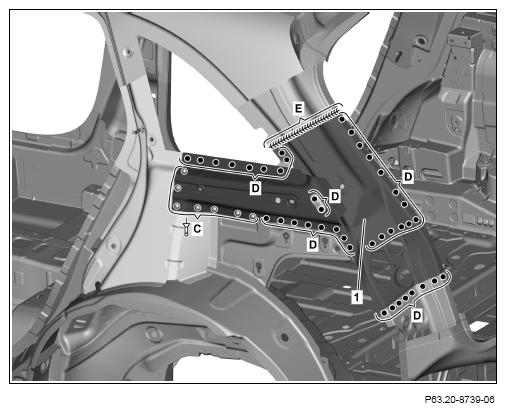

7. Install D-pillar (1) and fix in place.
8. Rivet D-pillar (1) with Ø 6.4x12 rivet (area C).
9. D-pillar (1) (areas D).
10. D-pillar (1) (areas E).

    Perform inert gas welding at intervals and allow to cool down in between. This reduces heat distortion.

11. Grind inert gas weld on D-pillar (1) down flat (area E).

    Grind down flat only on beaded areas and contact areas of rear fender.

12. Clean weld joints that are no longer accessible after the rear fender is installed and coat with zinc dust paint.

    Shown on model 253.9

Courtesy of MERCEDES-BENZ USA
