Separate Upper Front Longitudinal Member - Ar62.20-P-1286-01LW

Model 205

Model 213

Model 253

Model 293

The next steps are shown on the left side of the vehicles for models 205 and 253; in the event of damage on the right side of the vehicle, perform in the same way.

The superordinate customer service document and the safety information in the customer service document must be observed.

Fig 1: Upper Front Longitudinal Member Strut And Bracket Removal Cut Lines And Locations

Courtesy of MERCEDES-BENZ USA

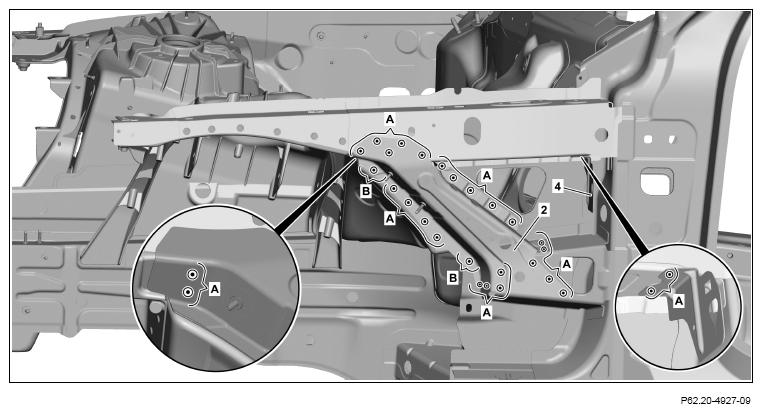

1. Expose spot welds on the strut (2) and on the bracket (4) and cut off (area A and B).

   Cut out spot welds through two sheet metal thicknesses (area B).

2. Remove bracket (4).

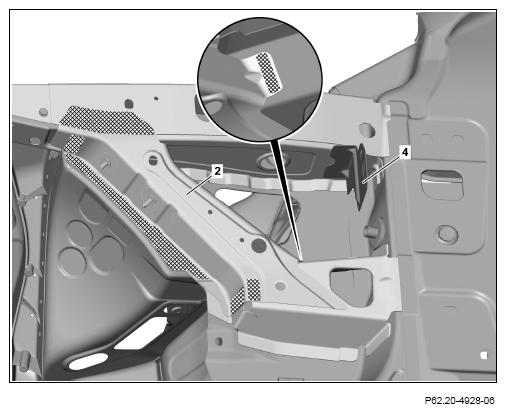

3. Warm strut (2) in the cross-hatched area.

   Cross-hatched areas are bonded with adhesive.

4. Remove strut (2).

   Courtesy of MERCEDES-BENZ USA

   Fig 2: Upper Front Longitudinal Member Removal Cut Lines And Measurement Locations

   Courtesy of MERCEDES-BENZ USA
5. Model 205

   Model 213

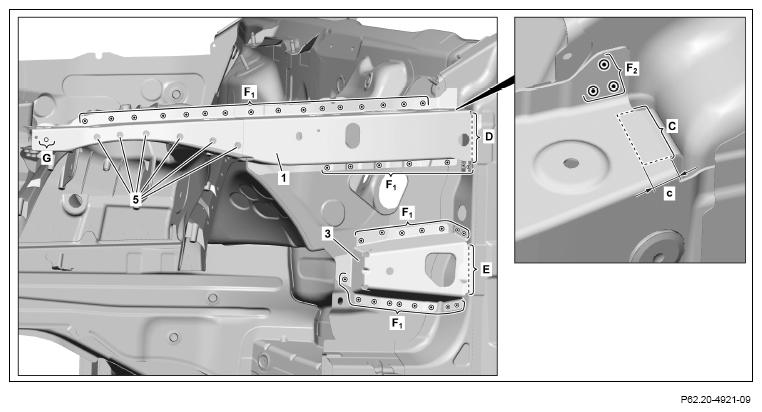

   Mark separating point on upper front longitudinal member (1) and cut (area C).

   Do not cut too deeply.

   Otherwise the components below can be damaged and weakened.

   Dimensions:

   c = approx. 20 mm

6. Mark separating points on the front top longitudinal member (1) and reinforcement (3) and disconnect (area D and E).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

7. Expose screws (5) on the top front longitudinal member (1) and remove.
8. 1. 8.1 Model 205

      Model 213

      Expose spot welds on the front top longitudinal member (1) and reinforcement (3) and cut off (area F₁ and F₂ ).

   2. 8.2 Model 253

      Model 293

      Expose spot welds on upper front longitudinal member (1) and reinforcement (3) and cut out (areas F₁ ).

9. Expose self-piercing riveting on upper front longitudinal member (1) and drill with Ø 6 mm bit (area G).
10. Model 253

    Model 293

    Expose spot welds on upper front longitudinal member (1) and cut out (area F₃ ).

    Fig 3: Upper Front Longitudinal Member Removal Cut Locations

    Courtesy of MERCEDES-BENZ USA

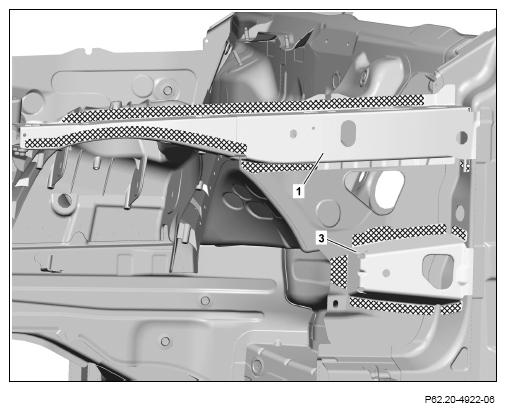

11. Heat upper front longitudinal member (1) and reinforcement (3) in crosshatched areas.

    Cross-hatched areas are bonded with adhesive.

12. Remove reinforcement (3).

    Courtesy of MERCEDES-BENZ USA

13. Model 253

    Model 293

    Heat upper front longitudinal member (1) in crosshatched area.

    Cross-hatched area is bonded.

14. Remove upper front longitudinal member (1).

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

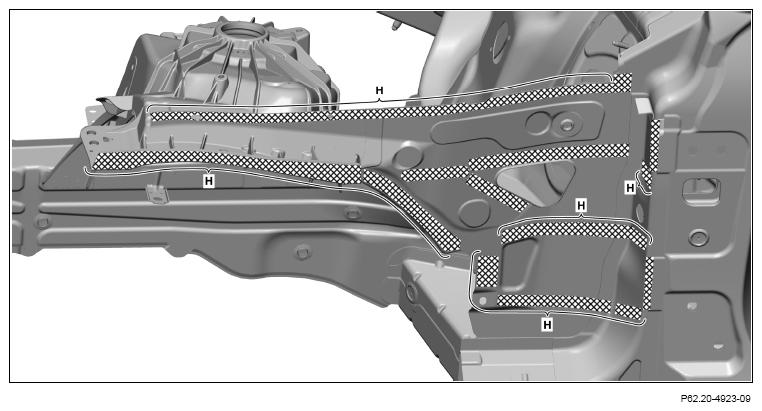

15. Grind mating surfaces down to bare metal in cross-hatched areas.

    Sand down spot weld flanges to bare metal on both sides.

16. Remove grinding dust and drill chips.
17. Apply zinc dust paint to insides of spot weld flanges. onto connecting flanges that are no longer accessible after installing side roof paneling.

    Do not coat bonding surfaces with zinc dust paint (area H).

    Otherwise adhesion problems can occur.

    Observe pretreatment of bonding surfaces.

18. Model 253

    Model 293

    Grind mating surface down to bare metal in cross-hatched area.

19. Remove grinding dust.
