Remove/Install Condenser - AR83.30-P-6540MNG
Model 253 with engine 177
Shown with code 2U8 (Refrigerant R1234yf)
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0007-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-N-0005-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on handling refrigerant R1234yf | AH83.30-P-0003-02A | ||
| Remove/install | |||
| 1 | Remove cooler from supporting frame (50) | AR20.20-P-3865MNG | |

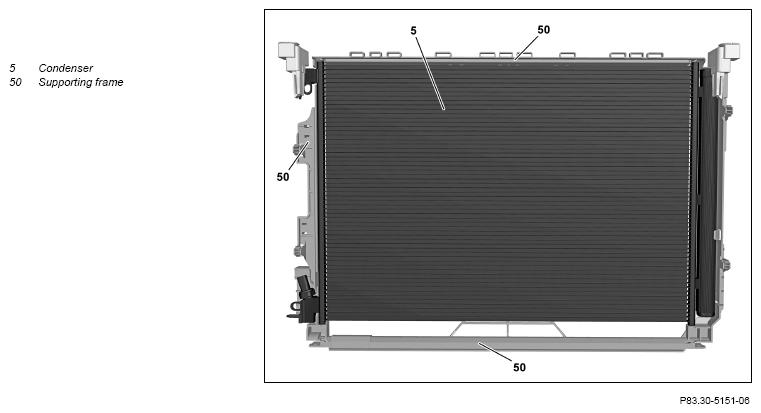

| 2 | Remove condenser (5) from supporting frame (50) | ||
| 3 | Check condenser (5) for any damage | If damaged. ↓ Replace condenser (5). |
|
| 4 | Mount new refrigerant pressure sensor (B12) onto condenser (5) | When replacing the condenser (5). | AR83.30-P-5430LW |
| *BA83.30-P-1006-01Q | |||
| 5 | Install in the reverse order |
AIR CONDITIONING
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA83.30-P-1006-01Q | Refrigerant pressure sensor to condenser | Nm | 10 |
