Check Condition Of Battery - AR54.10-P-1129LW

Model 205

except code P25 (BlueEFFICIENCY Edition)

except code U98 (LITHIUM-ION STARTER BATTERY (LISB))

Model 213, 238, 253

except code U98 (LITHIUM-ION STARTER BATTERY (LISB))

Courtesy of MERCEDES-BENZ USA

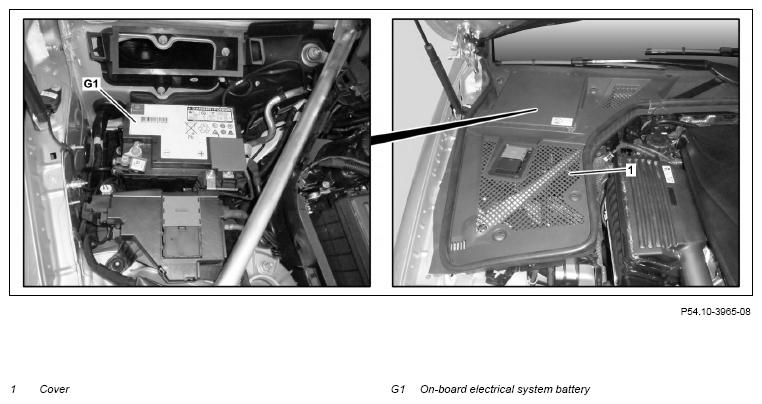

Shown on model 205 with on-board electrical system battery (G1) in engine compartment

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system		AH00.00-Z-0300-01A
	Notes on battery		AH54.10-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Expose on-board electrical system battery (G1)	Model 238 except code B01 (48V technology) except code U98 (LITHIUM-ION STARTER BATTERY(LISB))	AR54.10-P-0009LWO
		Model 238 with code B01 (48V technology) except code U98 (LITHIUM-ION STARTER BATTERY (LISB))	AR54.10-P-0009LWK
		Model 205 (except 205.012/047/147/212/247) except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) Model 213, 253 except code U98 (LITHIUM-ION STARTER BATTERY (LISB))	AR54.10-P-0005LW
		Model 205.012/212 except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-ION STARTER BATTERY (LISB))	AR54.10-P-0005LWH
		Model 205.047/147/247 except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) The test should, if possible, be carried when the on-board electrical system battery (G1) is installed and connected.	AR54.10-P-0005LWA
	Check
2	Perform visual check for external leakage at on board electrical system battery (G1).	If the on-board electrical system battery (G1) is leaky, ↓ replace on-board electrical system battery (G1)
		Model 238 except code B01 (48V technology) except code U98 (LITHIUM-ION STARTER BATTERY (LISB))	AR54.10-P-0009LWO
		Model 238 with code B01 (48V technology) except code U98 (LITHIUM-ION STARTER BATTERY (LISB))	AR54.10-P-0009LWK
		Model 205 (except 205.012/047/147/212/247) except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) Model 213, 253 except code U98 (LITHIUM-ION STARTER BATTERY (LISB))	AR54.10-P-0005LW
		Model 205.012/212 except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-ION STARTER BATTERY (LISB))	AR54.10-P-0005LWH
		Model 205.047/147/247 except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-ION STARTER BATTERY (LISB))	AR54.10-P-0005LWA
3	Check on-board electrical system battery (G1).		AR54.10-P-1129-01A
	000 588 02 19 00 Battery tester		WS54.00-N-3006B
		Battery capacity 60 Ah VRLA/AGM	*BE54.10-P-1006-01A
		Battery capacity 70 Ah VRLA/AGM	*BE54.10-P-1010-01A
		Battery capacity 80 Ah VRLA/AGM	*BE54.10-P-1012-01A
		Battery capacity 95 Ah VRLA	*BE54.10-P-1015-01A
4.1	Remove increased voltage.	If there is the message "Surface voltage detected" on the battery test device or a stress under proof load of more than 12.8 V.	AR54.10-P-1129-03A
	000 588 03 19 00 Load tester		WS15.00-P-0027B
4.2	Charge on-board electrical system battery (G1)	If the "Charge and test" message appears on the battery test device.
			AR54.10-P-1130LW
4.3	Replace on-board electrical system battery (G1).	If there is the message "Replace on-board electrical system battery" on the battery test device.
		Model 238 except code B01 (48V technology) except code U98 (LITHIUM-ION STARTER BATTERY (LISB))	AR54.10-P-0009LWO
		Model 238 with code B01 (48V technology) except code U98 (LITHIUM-ION STARTER BATTERY (LISB))	AR54.10-P-0009LWK
		Model 205 (except 205.012/047/147/212/247) except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) Model 213, 253 except code U98 (LITHIUM-ION STARTER BATTERY (LISB))	AR54.10-P-0005LW
		Model 205.012/212 except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-ION STARTER BATTERY (LISB))	AR54.10-P-0005LWH
		Model 205.047/147/247 except code P25 (BlueEFFICIENCY Edition) except code U98 (LITHIUM-ION STARTER BATTERY (LISB))	AR54.10-P-0005LWA
5	Check on-board electrical system battery (G1) again.	After removing an increased charging voltage or charging the on-board electrical system battery (G1) after the message "Charge and check" on battery test device.	AR54.10-P-1129-01A
	000 588 02 19 00 Battery tester		WS54.00-N-3006B
		Battery capacity 60 Ah VRLA/AGM	*BE54.10-P-1006-01A
		Battery capacity 70 Ah VRLA/AGM	*BE54.10-P-1010-01A
		Battery capacity 80 Ah VRLA/AGM	*BE54.10-P-1012-01A
		Battery capacity 95 Ah VRLA	*BE54.10-P-1015-01A
6	Install in the reverse order
