(Remove/Install Front RPM Sensor - AR42.30-P-0713LWO)
Model 238
Shown except CODE M005 (4MATIC)
| Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Remove front wheel | AR40.10-P-1102A | |

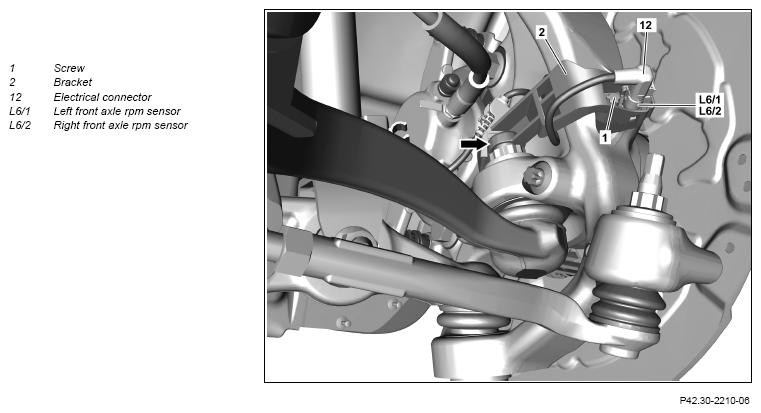

| 2 | Release electrical connection (12) and detach from left front axle RPM sensor (L6/1) or right front axle RPM sensor (L6/2) | ||
| 3 | Remove bolt (1) | ||
| 4 | Lift bracket (2) over the nut (arrow), detach from left front axle RPM sensor (L6/1) or right front axle RPM sensor (L6/2) and hook bracket (2) to one side | ||
| 5 | Remove left front axle RPM sensor (L6/1) or right front axle RPM sensor (L6/2) | ||
| 6 | Install in the reverse order | ||
| 7 | Read out and erase fault memory using the diagnostic system | ||
| AD00.00-P-2000-06LWO |
