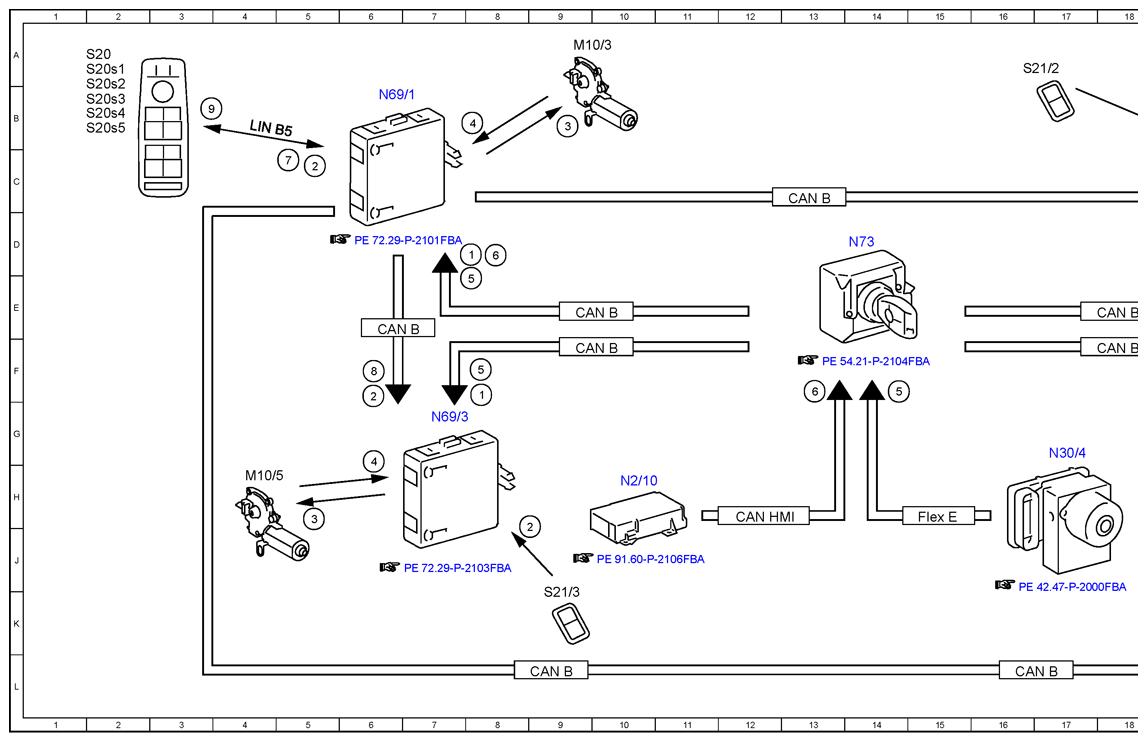

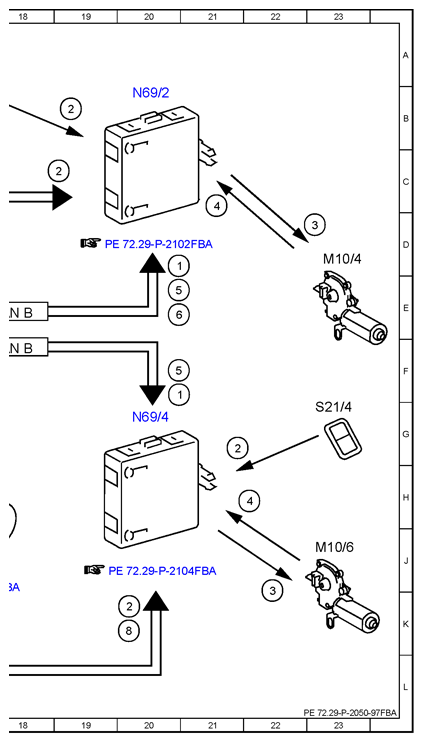

Electrical Function Diagram For Power Windows - PE72.29-P-2050-97FBA
Model 205.0/1/2, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8D |
| 1 | Circuit 15, status | 20D |
| 1 | Circuit 15, status | 20F |
| 1 | Circuit 15, status | 8F |
| 2 | Power window switch, status | 19B |
| 2 | Power window switch, status | 5C |
| 2 | Power window switch, status | 6F |
| 2 | Power window switch, status | 8J |
| 2 | Power window switch, status | 20K |
| 2 | Power window switch, status | 21G |
| 2 | Power window switch, status | 19C |
| 3 | Power window motor, actuation | 23D |
| 3 | Power window motor, actuation | 9B |
| 3 | Power window motor, actuation | 22K |
| 3 | Power window motor, actuation | 5H |
| 4 | Power window motor Hall sensor, signal | 21C |
| 4 | Power window motor Hall sensor, signal | 22H |
| 4 | Power window motor Hall sensor, signal | 6H |
| 4 | Power window motor Hall sensor, signal | 8B |
| 5 | Adjust PRE-SAFE®, request | 8D |
| 5 | Adjust PRE-SAFE®, request | 8F |
| 5 | Adjust PRE-SAFE®, request | 15F |
| 5 | Adjust PRE-SAFE®, request | 20E |
| 5 | Adjust PRE-SAFE®, request | 20G |
| 6 | Crash, signal | 13F |
| 6 | Crash, signal | 8D |
| 6 | Crash, signal | 20E |
| 7 | Child safety lock switch, status | 5C |
| 8 | Rear side window child safety lock, status | 6F |
| 8 | Rear side window child safety lock, status | 20K |
| 9 | Rear side window child safety lock readiness indicator, request | 3B |
| CAN B | Interior CAN | 13C |
| CAN B | Interior CAN | 9L |
| CAN B | Interior CAN | 16L |
| CAN B | Interior CAN | 18E |
| CAN B | Interior CAN | 18F |
| CAN B | Interior CAN | 9F |
| CAN B | Interior CAN | 9E |
| CAN B | Interior CAN | 6E |
| CAN HMI | User interface CAN | 12H |
| Flex E | Chassis FlexRay | 15H |
| LIN B5 | Left front door LIN | 4B |
| M10/3 | Left front power window motor | 9A |
| M10/4 | Right front power window motor | 23D |
| M10/5 | Left rear power window motor | 4H |
| M10/6 | Right rear power window motor | 23J |
| N2/10 | Supplemental restraint system control unit | 10H |
| N30/4 | Electronic Stability Program control unit | 17G |
| N69/1 | Left front door control unit | 6B |
| N69/2 | Right front door control unit | 20B |
| N69/3 | Left rear door control unit | 7G |
| N69/4 | Right rear door control unit | 20G |
| N73 | Electronic ignition switch control unit | 14D |
| S20 | Driver-side power window and outside mirror adjustment switch group | 1A |
| S20s1 | Left front power window switch | 1A |
| S20s2 | Right front power window switch | 1B |
| S20s3 | Left rear power window switch | 1B |
| S20s4 | Right rear power window switch | 1B |
| S20s5 | Rear side window child safety lock switch | 1B |
| S21/2 | Passenger-side power window switch | 16A |
| S21/3 | Left rear power window switch | 9K |
| S21/4 | Right rear power window switch | 23G |
