Adjust Front Panoramic Glass Roof - AR77.21-P-0501NKA
Model 117, 156, 176
with code 413 (Automatic panoramic sliding sunroof)
Model 205
with code 413 (Automatic panoramic sliding sunroof)
Model 222
with code 398 (Panoramic roof with MAGIC SKY CONTROL)
Model 222
with code 413 (Automatic panoramic sliding sunroof)
Model 253
with code 413 (Automatic panoramic sliding sunroof)

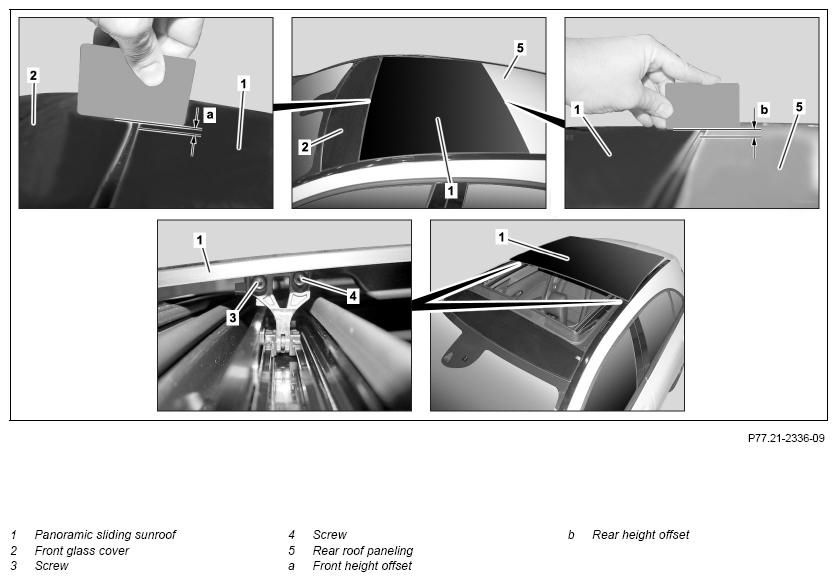

Shown on model 176

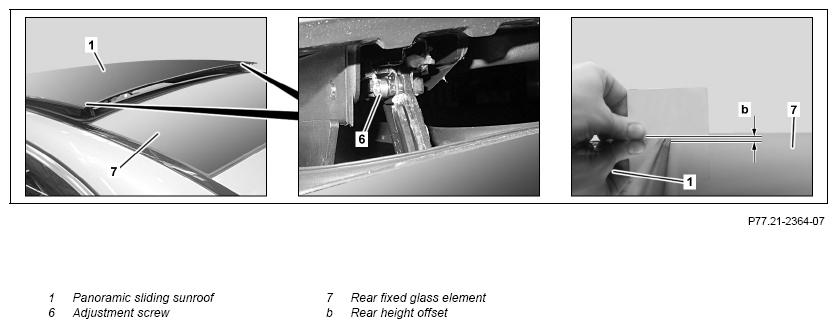

Shown on model 205.0 and 222
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Check | |||
| 1 | Completely close panoramic sliding roof (1) | ||
| 2 | Check front height offset (a) from front glass cover (2) to panoramic sliding roof (1) and adjust if required | ||
| 3.1 | Check rear height offset (b) of panoramic sliding roof (1) to rear roof paneling (5) and adjust if required | Model 117, 156, 176 with code 413 (Automatic panoramic sliding sunroof) with code 413 (Automatic panoramic sliding sunroof) The rear height offset (b) cannot be adjusted. The rear edge of the closed panoramic sliding roof (1) should be flush or max. 2 mm height than the rear roof paneling (5). |
|
| 3.2 | Check rear height offset (b) of panoramic sliding roof (1) to rear fixed glass section (7) and adjust if required | Model 205 with code 413 (Automatic panoramic sliding sunroof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof) The dimension of the rear height offset (b) should be equal over the entire width of the panoramic sliding roof (1). |
|
| Adjust | |||
| 4 | Completely open panorama sliding roof (1) | ||
| 5 | Loosen bolts (3, 4) | ||
| 6 | Adjust front height offset (a) on panoramic sliding roof (1) so that the rear edge of the front glass cover (2) is flus or max. 2 mm higher than the completely closed panoramic sliding roof (1) | ||
| 7 | Tighten bolts (3, 4) | *BA77.21-P-1001-01E | |
| 8 | Move panoramic sliding roof (1) to tilt position | Model 156 with code 413 (Automatic panoramic sliding sunroof) Model 205 with code 413 (Automatic panoramic sliding sunroof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof) |
|
| 9 | Adjust rear height offset (b) by uniformly turning adjustment screw (6) on left and right side of panoramic sliding roof (1) so that the rear edge of the panoramic sliding roof (1) is flush or max. 2 mm higher than the rear fixed glass section (7) | Model 156 with code 413 (Automatic panoramic sliding sunroof) Model 205 with code 413 (Automatic panoramic sliding sunroof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof) |
|
| 10 | Close panoramic sliding roof (1) | ||
| 11 | Normalize panoramic sliding roof (1) with diagnostic system and perform teach-in run for automatic reversing function | Model 117, 156, 176 with code 413 (Automatic panoramic sliding sunroof) Model 205 with code 413 (Automatic panoramic sliding sunroof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof) |
|
| Model 117, 156, 176 with code 413 (Automatic panoramic sliding sunroof) |
AD00.00-P-2000-04A | ||
| Model 205 with code 413 (Automatic panoramic sliding sunroof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222 with code 413 (Automatic panoramic sliding sunroof) |
AD00.00-P-2000-04B |
PANORAMIC ROOF
| Number | Designation | Model 117 | Model 156 | |
|---|---|---|---|---|
| BA77.21-P-1001-01E | Screw/bolt, front guide to panoramic sliding sunroof | Nm | 5 | 5 |
PANORAMIC ROOF
| Number | Designation | Model 176 | Model 205 | |
|---|---|---|---|---|
| BA77.21-P-1001-01E | Screw/bolt, front guide to panoramic sliding sunroof | Nm | 5 | 5 |
PANORAMIC ROOF
| Number | Designation | Model 222 | Model 253 | |
|---|---|---|---|---|
| BA77.21-P-1001-01E | Screw/bolt, front guide to panoramic sliding sunroof | Nm | 5 | 5 |
