Remove/Install Trunk Lid Lock - AR72.20-P-1022LW
Model 205.2
Model 213.2
Model 253
Model 293
Shown on model 205.2 with code 890 (EASY-PACK liftgate)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||

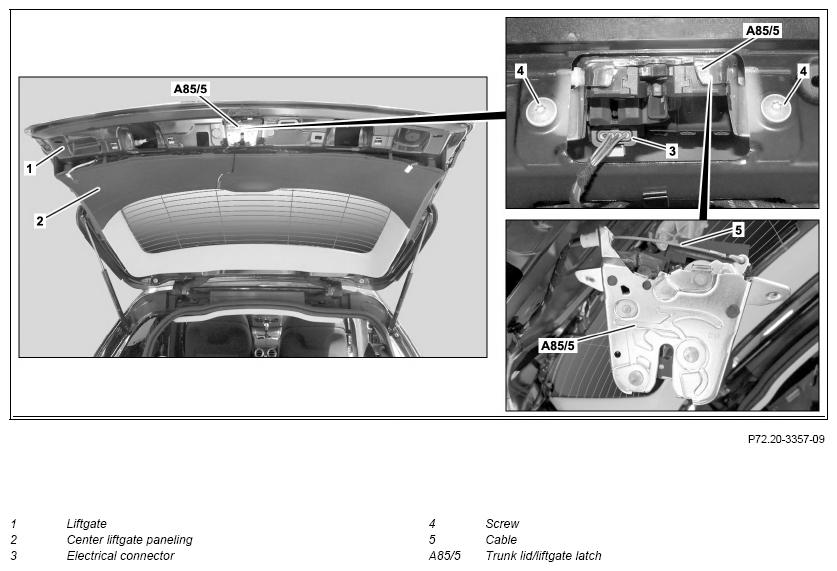

| 1 | Remove center liftgate trim (2). | AR72.20-P-6618LWS | |
| 2 | Disconnect electrical connector (3). | ||
| 3 | Remove vibration damper. | Model 293 | |
| AR72.20-P-1025EQ | |||
| 4 | Remove screws/bolts (4). | *BA72.20-P-1004-02N | |
| 5 | Move trunk lid/liftgate latch (A85/5) out of liftgate (1). | ||
| 6 | Remove cable (5) from the trunk lid/liftgate latch (A85/5). | Model 205.2, 213.2, 253, 293 with code 890 (EASY-PACK-tailgate) |
|
| 7 | Install in the reverse order. |
LIFTGATE
| Number | Designation | Model 205.2 | Model 213.2 | |
|---|---|---|---|---|
| BA72.20-P-1004-02N | Screw/bolt, door lock to liftgate | Nm | 9 | 9 |
LIFTGATE
| Number | Designation | Model 253 | Model 293 | |
|---|---|---|---|---|
| BA72.20-P-1004-02N | Screw/bolt, door lock to liftgate | Nm | 9 | 9 |
