Remove/Install Liftgate Unlocking Handle - AR72.20-P-2559LWX
Model 253.3

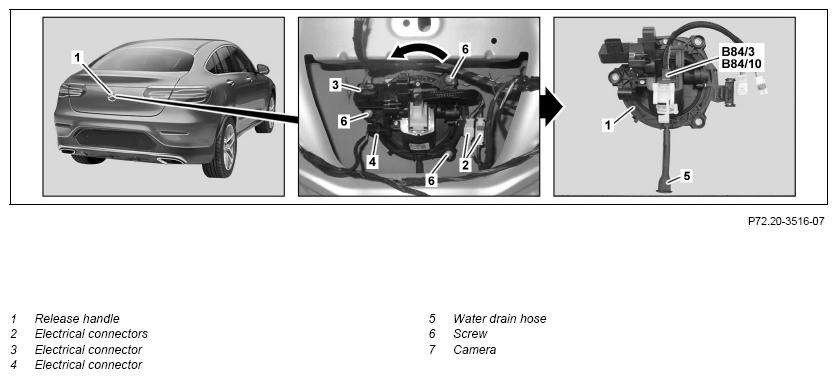

Shown with code 501 (360° camera)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | Model 253.3 with code 871 (HANDS-FREE ACCESS) with code 889 (KEYLESS-GO) |
AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove center liftgate paneling | AR72.20-P-6618LWS | |
| 3 | Separate electrical connectors (2) | Model 253.3 with code 218 (Rear view camera) Model 253.3 with code 501 (360° camera) |
|
| 4 | Release and disconnect electrical connection (3) | ||
| 5 | Disconnect electrical connection (4) | ||
| 6 | Press water drain hose (5) toward inside into liftgate | ||
| 7 | Remove bolts (6) | ||
| 8 | Turn release handle (1) in direction of arrow and remove toward inside | ||
| 9 | Remove water drain hose (5) from release handle (1) | When replacing release handle (1). | |
| 10 | Remove camera (7) from release handle (1) | Model 253.3 with code 218 (Rear view camera) Model 253.3 with code 501 (360° camera) When replacing release handle (1). |
AR54.65-P-0030LWX |
| 11 | Install in the reverse order |
