Remove/Install Electric Liftgate Drive Unit - AR72.29-P-5590LWX
Model 253.3
with code 890 (EASY-PACK-tailgate)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | Model 253.3 with code 871 (HANDS-FREE ACCESS) with code 889 (KEYLESS-GO) with code 890 (EASY-PACK-tailgate) |
AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Remove center liftgate paneling | AR72.20-P-6618LWS | |
| 2 | Disconnect electrical connector (1) | ||
| 3 | Detach grommet (2) from liftgate (3) | ||
| 4 | Unclip electrical wiring harness (4) and guide outward out of liftgate (3) | ||

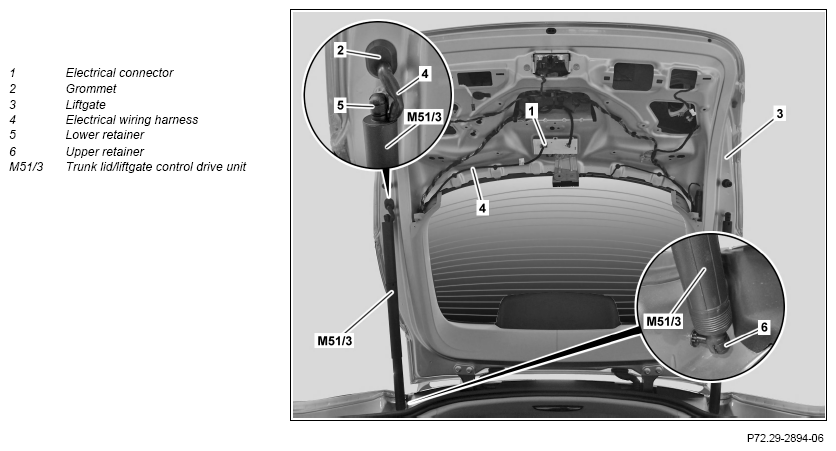

| 5 | Secure liftgate (3) with support | Fig 1 | |
| 6 | Lift lower retainer (5) with a suitable screwdriver, and remove trunk lid/liftgate control drive unit (M51/3) from D-pillar | Do not remove lower retainer (5). Otherwise the tension on the lower retainer (5) can be lost. |
|
| 7 | Lift upper retainer (6) with a suitable screwdriver, detach trunk lid/liftgate control drive unit (M51/3) from liftgate (3) and remove | Do not remove upper retainer (6). Otherwise the tension on the upper retainer (6) can be lost. |
|
| 8 | Remove trunk lid/liftgate control drive unit (M51/3) | ||
| 9 | Install in the reverse order | ||
| 10 | Normalize trunk lid/liftgate control drive unit (M51/3) with diagnostic system | When replacing trunk lid/liftgate control drive unit (M51/3). | |
| AD00.00-P-2000-04B |
