Power Window Assembly And Outside Mirror Adjustment Switch Group, Driver'S Side, Basic Function - GF72.29-P-2006A
Model all (CAR)
| Item | Function | Designation | Equipment |
|---|---|---|---|
| 1.1 | Lower/raise left front side window | Left front power window switch | - |
| 1.2 | Lower/raise right front side window | Right front power window switch | - |
| 1.3 | Lower/raise left rear side window | Left rear power window switch | - |
| Extend/retract left rear side window roller sunblind | - | Vehicles with roller sunblind in rear doors | |
| 1.4 | Lower/raise right rear side window | Right rear power window switch | - |
| Extend/retract right rear side window roller sunblind | - | Vehicles with roller sunblind in rear doors | |
| 1.5 | Disable operation for side window in rear | Rear side window child safety lock switch | - |
| 1.6 | Select left outside mirror | Left outside mirror adjustment switch | - |
| 1.7 | Select right outside mirror | Right outside mirror adjustment switch | - |
| 1.8 | Change mirror glass adjustment | Outside mirror adjustment switch | - |
| 1.9 | Fold out/in outside mirror | Outside mirror fold-in/fold-out switch | Vehicles with electric folding outside mirror |
Location

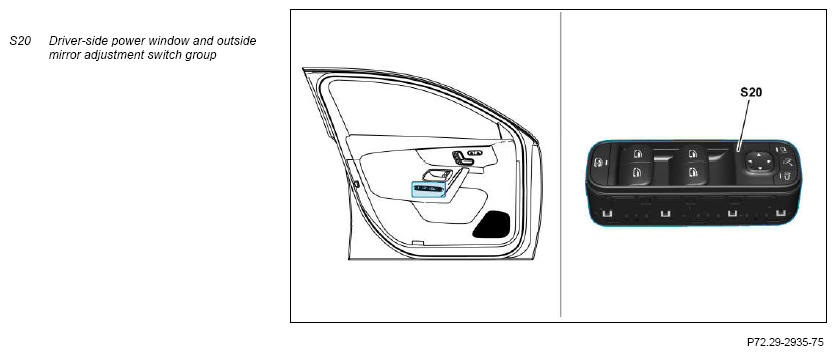

The power window and outside mirror adjustment switch group is located in the trim of the driver's door.
Task
The following functions can be operated via the power window and outside mirror adjustment switch group:
- Power windows
- Electrical rear side window roller sunblinds (vehicles with roller sunblinds in rear doors)
- Electric outside mirrors
- Electrical child safety lock
The power window assembly and outside mirror adjustment switch group is connected to the driver's door control unit.
