Carry out distance and comparison measurements on front and rear axles - AR40.30-P-0402NKB

MODEL 117, 156, 176, 242, 246

Shown on MODEL 246, front axle

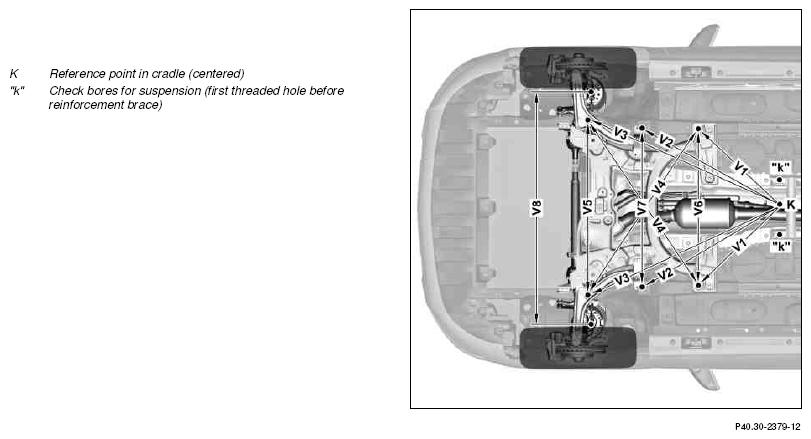

Fig 1: Front Axle Distance And Comparison Measurements - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 246, rear axle

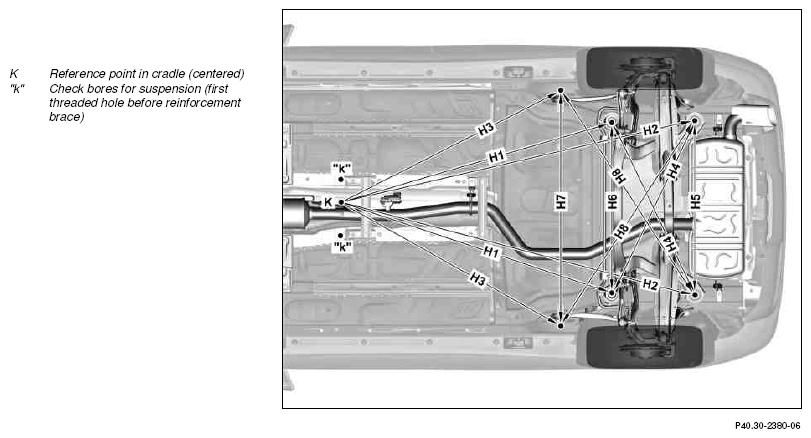

Fig 2: Rear Axle Distance And Comparison Measurements - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

	Measure
1	Perform preparations for distance and comparative measurements		AR40.30-P-0401NKB
2	Carry out distance measurement on front axle	In the case of front end damage.
		In the case of front end damage.	AR40.30-P-0402-01NKB
		MODEL 242 Measure distance dimensions V4 to V8. Depending on the accident damage involved, individual additional measuring points can be defined for the comparative measurement.	AR40.30-P-0402-01NKB
		Dimension	*BE40.30-P-1001-06J
		Mount	Figure
		Retaining tube	Figure
		Telescopic measuring rod	Figure
		Telescopic measuring rod	Figure
		Connecting pieces	Figure
		Measuring set	Figure
3	Carry out distance measurement on rear axle	In the case of rear end damage.
		In the case of rear end damage.	AR40.30-P-0402-02NKB
		MODEL 242 Measure distance dimensions H4 to H8. Depending on the accident damage involved, individual additional measuring points can be defined for the comparative measurement.	AR40.30-P-0402-02NKB
		Dimension	*BE40.30-P-1001-05I
		Mount	Figure
		Retaining tube	Figure
		Telescopic measuring rod	Figure
		Telescopic measuring rod	Figure
		Connecting pieces	Figure
		Measuring set	Figure

CHECK VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENT ON REAR AXLE

Number	Designation			MODEL 156	MODEL 117
BE40.30-P-1001-05I	Dimension	H1	mm	1497 (±2)	1497 (±2)
		H2	mm	1934 (±2)	1934 (±2)
		H3	mm	1309 (±2)	1309 (±2)
		H4	mm	1053 (±2)	1053 (±2)
		H5	mm	950 (±2)	950 (±2)
		H6	mm	950 (±2)	950 (±2)
		H7	mm	1292 (±2)	1292 (±2)
		H8	mm	1341 (±2)	1341 (±2)
		For picture, see		-	AR40.30-P-0402-02NKB

CHECK VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENT ON REAR AXLE

Number	Designation			MODEL 176, 246	MODEL 242
BE40.30-P-1001-05I	Dimension	H1	mm	1497 (±2)	-
		H2	mm	1934 (±2)	-
		H3	mm	1309 (±2)	-
		H4	mm	1053 (±2)	1053 (±2)
		H5	mm	950 (±2)	950 (±2)
		H6	mm	950 (±2)	950 (±2)
		H7	mm	1292 (±2)	1292 (±2)
		H8	mm	1341 (±2)	1341 (±2)
		For picture, see		AR40.30-P-0402-02NKB	AR40.30-P-0402-02NKB

CHECK VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENT ON FRONT AXLE

Number	Designation			MODEL 117	MODEL 156
BE40.30-P-1001-06J	Dimension	V1	mm	614 (±2)	614 (±2)
		V2	mm	864 (±2)	864 (±2)
		V3	mm	1146 (±2)	1146 (±2)
		V4	mm	1090 (±2)	1090 (±2)
		V5	mm	951 (±2)	951 (±2)
		V6	mm	862 (±2)	862 (±2)
		V7	mm	870 (±2)	870 (±2)
		V8	mm	1105 (±2)	1105 (±2)
		For picture, see		AR40.30-P-0402-01NKB	-

CHECK VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENT ON FRONT AXLE

Number	Designation			MODEL 176, 246	MODEL 242
BE40.30-P-1001-06J	Dimension	V1	mm	614 (±2)	-
		V2	mm	864 (±2)	-
		V3	mm	1146 (±2)	-
		V4	mm	1090 (±2)	1090 (±2)
		V5	mm	951 (±2)	951 (±2)
		V6	mm	862 (±2)	862 (±2)
		V7	mm	870 (±2)	870 (±2)
		V8	mm	1105 (±2)	1105 (±2)
		For picture, see		AR40.30-P-0402-01NKB	AR40.30-P-0402-01NKB

Fig 3: Identifying Retaining Tube (164 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Mount (170 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Measuring Set (168 589 07 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Connecting Pieces (124 589 08 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Telescopic Measuring Rod (124 589 01 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Courtesy of MERCEDES-BENZ USA
