Attaching Mercedes-Benz quick-clamping devices - AR40.20-P-0230SX
MODEL 117, 156, 166, 172, 176, 190, 197, 204, 205, 207, 212, 216, 217, 218, 221.0/1, 222, 242, 246
Shown on model 221
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
| |
Mount/dismantle |
|
|
| 1 |
Attach quick clamping devices (01) to the front and rear wheels and remove clamping lever |

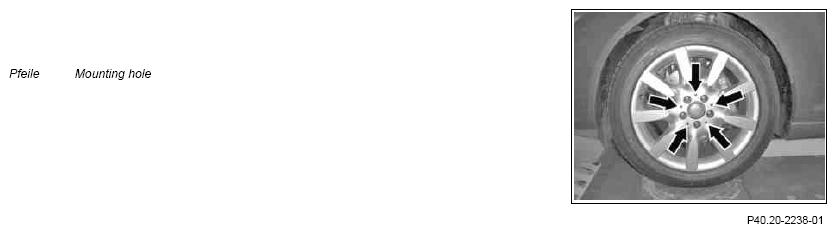

The mounting bell is centered on the disk wheel or rear axle shaft flange by locating the check pins in the five mounting holes (arrows) in the rim.
Check the quick clamping devices (01), wheel mirrors and measurement pickups at regular intervals in accordance with the manufacturer's instructions. |
|
|
Quick clamping device |
Fig 3 |
| 2 |
Attach wheel mirrors or measurement sensors |
|
|
| 3 |
Dismantle in reverse order |
|
|
