Adjust front axle toe - AR40.20-P-0264NKB

MODEL 117, 156, 176, 242, 246

MODIFICATION NOTES

19.6.15 Total front axle toe at vehicle level Model 117 with code 485 BE40.20-P-1001-07W
19.6.15 Total front axle toe at vehicle level Model 117 with code 486 except code 4U3/P84, model 117 with code 677 BE40.20-P-1001-07W
19.6.15 Total front axle toe at vehicle level Model 117 with code 486+4U3 BE40.20-P-1001-07W
19.6.15 Total front axle toe at vehicle level MODEL 117 AMG BE40.20-P-1001-07W
19.6.15 Total track front axle at vehicle level Model 117 with Code 485 BE40.20-P-1001-07W
19.6.15 Total track front axle at vehicle level Model 117 with Code 486 except Code 4U3/P84, Model 117 with Code 677 BE40.20-P-1001-07W
19.6.15 Total track front axle at vehicle level Model 117 with Code 486+4U3 BE40.20-P-1001-07W
19.6.15 Total track front axle at vehicle level Model 117 AMG BE40.20-P-1001-07W

Shown on MODEL 246

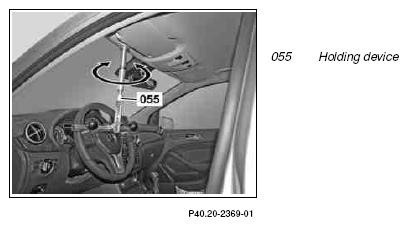

Fig 1: Front Axle Toe Adjustment Components - Shown On Model 246 (1 Of 3)
G10251051Courtesy of MERCEDES-BENZ USA
Fig 2: Front Axle Toe Adjustment Components - Shown On Model 246 (2 Of 3)
G10251052Courtesy of MERCEDES-BENZ USA

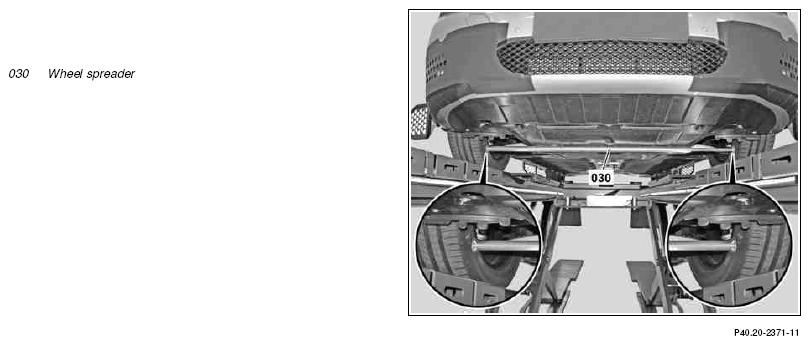

Fig 3: Front Axle Toe Adjustment Components - Shown On Model 246 (3 Of 3)
G10251053Courtesy of MERCEDES-BENZ USA
  Adjust
1 Fix steering wheel in center position using holding device (055); to do this, insert the holding device (055) in front of the sun visor NOTES The emblem in the steering wheel must be protected against damage.
Otherwise the SPECIAL TOOL holding device (055) may make an indent on the emblem.
SPECIAL TOOL Retainer device Fig 4
2 Check center position of steering gear and steering wheel If necessary
↓
Move steering gear to center position or adjust steering wheel by no more than one tooth
AR46.10-P-0100NKB
AR46.20-P-0500-01NKB
3 Insert wheel spreader (030) in direction of driving at the front on the interior side of the wheel
4 Counterhold tie rod (10) at the hexagon and loosen jam nut (10f)
5 Rotate the tie rods (10) to adjust the toe angle. Model 156 (except 156.952)
with code 482 (Off-road comfort suspension)
Model 156 (except 156.952)
with code 485 (Comfort suspension)
Model 156 (except 156.952)
with code 486 (Sports suspension)
Model 156 (except 156.952)
with code 494 (US version)
Model 156.952 total front axle toe at vehicle level		 *BE40.20-P-1001-07CA
Model 117 (except 117.352/952)
with code 482 (Off-road comfort suspension)
Model 117 (except 117.352/952)
with code 485 (Comfort suspension)
Model 117 (except 117.352/952)
with code 486 (Sports suspension)
except code 4U3 (Eco technology package)
except code P84 (Sports model)
Model 117 (except 117.352/952) with code 486 (Sports suspension)
with code 4U3 (Eco technology package)
Model 117 (except 117.352/952)
with code 677 (AGILITY CONTROL suspension)
Model 117.3 (except 117.352)
with code 486 (Sports suspension)
with code P84 (Sports model)
Model 117.352/952 total front axle toe at vehicle level		 *BE40.20-P-1001-07W
Model 176 (except 176.052)
with code 482 (Off-road comfort suspension)
Model 176 (except 176.052)
with code 485 (Comfort suspension)
Model 176 (except 176.052)
with code 486 (Sports suspension) except code P84 (Sports model)
Model 176 (except 176.052)
with code 677 (AGILITY CONTROL suspension)
Model 176 (except 176.052)
with code P84 (Sports model)
Model 176.052 total front axle toe at vehicle level		 *BE40.20-P-1002-07U
Model 246
with code 482 (Off-road comfort suspension)
Model 246
with code 485 (Comfort suspension)
Model 246
with code 486 (Sports suspension)
Model 246
with code 677 (AGILITY CONTROL suspension) Total front axle toe at vehicle level		 *BE40.20-P-1001-07P
Model 242 total front axle toe at vehicle level *BE40.20-P-1001-07V
Model 156 (except 156.952)
with code 482 (Off-road comfort suspension)
Model 156 (except 156.952)
with code 485 (Comfort suspension)
Model 156 (except 156.952)
with code 486 (Sports suspension)
Model 156 (except 156.952)
with code 494 (US version)
Model 156.952 permissible difference in front axle toe between right and left side of vehicle		 *BE40.20-P-1002-07CA
Model 117 (except 117.352/952)
with code 482 (Off-road comfort suspension)
Model 117 (except 117.352/952)
with code 485 (Comfort suspension)
Model 117 (except 117.352/952)
with code 486 (Sports suspension)
except code 4U3 (Eco technology package)
except code P84 (Sports model)
Model 117 (except 117.352/952)
with code 486 (Sports suspension)
with code 4U3 (Eco technology package)
Model 117 (except 117.352/952)
with code 677 (AGILITY CONTROL suspension)
Model 117.3 (except 117.352)
with code 486 (Sports suspension)
with code P84 (Sports model)
Model 117.352/952 permissible difference in
front axle toe between right and left side of vehicle		 *BE40.20-P-1002-07W
Model 176 (except 176.052)
with code 482 (Off-road comfort suspension)
Model 176 (except 176.052)
with code 485 (Comfort suspension)
Model 176 (except 176.052)
with code 486 (Sports suspension) except code P84 (Sports model)
Model 176 (except 176.052)
with code 677 (AGILITY CONTROL suspension)
Model 176 (except 176.052)
with code P84 (Sports model)
Model 176.052 permissible difference in front axle toe between right and left side of vehicle		 *BE40.20-P-1003-07U
Model 246
with code 482 (Off-road comfort suspension)
Model 246
with code 485 (Comfort suspension)
Model 246
with code 486 (Sports suspension)
Model 246
with code 677 (AGILITY CONTROL suspension) Permissible difference in front axle toe between right and left side of vehicle		 *BE40.20-P-1002-07P
Model 242 permissible difference in front axle toe between right and left side of vehicle *BE40.20-P-1002-07V
6 Tighten jam nut (10f) TORQUE SPECIFICATION Jam nut for tie rod *BA46.40-P-1002-01O
7 Remove holding device (055) SPECIAL TOOL Retainer device Fig 4
8 Remove wheel spreader (030)
9 Check the boot for angular movement and align if necessary
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 156 with code 482 Model 156 with code 485
BE40.20-P-1001-07CA Total front axle toe at vehicle level 12.15° ∠° 0° 13' (±10') -
6.99° ∠° - 0° 13' (±10')
4.73° ∠° - -
3.30° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 156 with code 486 Model 156 with code 494
BE40.20-P-1001-07CA Total front axle toe at vehicle level 12.15° ∠° - 0° 13' (±10')
6.99° ∠° - -
4.73° ∠° 0° 13' (±10') -
3.30° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 156 AMG
BE40.20-P-1001-07CA Total front axle toe at vehicle level 12.15° ∠° -
6.99° ∠° -
4.73° ∠° -
3.30° ∠° ±0° 21' (±10')
CHECK VALUES FOR FRONT AXLE TOE

Number Designation MODEL 246 with CODE 482 MODEL 246 with CODE 485
BE40.20-P-1001-07P Total front axle toe at vehicle level 6.99° ∠° 0° 13' (±10') -
5.53° ∠° - 0° 12' (±10')
2.14° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation MODEL 246 with CODE 486/677
BE40.20-P-1001-07P Total front axle toe at vehicle level 6.99° ∠° -
5.53° ∠° -
2.14° ∠° 0° 13' (±10')
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 242
BE40.20-P-1001-07V Total front axle toe at vehicle level 11.51° ∠° 0° 13' (±10')
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 117 with code 485 Model 117 with code 486 except code 4U3/P84, model 117 with code 677
BE40.20-P-1001-07W Total front axle toe at vehicle level 0.94° ∠° - -
1.50° ∠° - -
1.66° ∠° - 0° 13' (±10')
3.11° ∠° - -
4.73° ∠° 0° 13' (±10') -
6.99° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 117 with code 486+4U3 Model 117.3 with code 486+P84
BE40.20-P-1001-07W Total front axle toe at vehicle level 0.94° ∠° - -
1.50° ∠° - 0° 22' (±10')
1.66° ∠° - -
3.11° ∠° 0° 13' (±10') -
4.73° ∠° - -
6.99° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 117 with code 482 Model 117 AMG
BE40.20-P-1001-07W Total front axle toe at vehicle level 0.94° ∠° - 0° 21' (±10')
1.50° ∠° - -
1.66° ∠° - -
3.11° ∠° - -
4.73° ∠° - -
6.99° ∠° 0° 13' (±10') -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 156 with code 482 Model 156 with code 485
BE40.20-P-1002-07CA Permissible difference in front axle toe between right and left side of vehicle ∠° ±10' ±10'
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 156 with code 486 Model 156 with code 494
BE40.20-P-1002-07CA Permissible difference in front axle toe between right and left side of vehicle ∠° ±10' ±10'
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 156 AMG
BE40.20-P-1002-07CA Permissible difference in front axle toe between right and left side of vehicle ∠° ±10'
CHECK VALUES FOR FRONT AXLE TOE

Number Designation MODEL 246 with CODE 482 MODEL 246 with CODE 485
BE40.20-P-1002-07P Permissible difference in front axle toe between right and left side of vehicle ∠° ±10' ±10'
CHECK VALUES FOR FRONT AXLE TOE

Number Designation MODEL 246 with CODE 486/677
BE40.20-P-1002-07P Permissible difference in front axle toe between right and left side of vehicle ∠° ±10'
CHECK VALUES FOR FRONT AXLE TOE

Number Designation MODEL 176 except AMG with CODE 482 MODEL 176 except AMG with CODE 485
BE40.20-P-1002-07U Total front axle toe at vehicle level 6.99° ∠° 0° 13' (±10') -
4.73° ∠° - 0° 13' (±10')
2.14° ∠° - -
1.66° ∠° - -
1.50° ∠° - -
0.94° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation MODEL 176 except AMG with CODE 486, except CODE P84 MODEL 176 except AMG with CODE 677
BE40.20-P-1002-07U Total front axle toe at vehicle level 6.99° ∠° - -
4.73° ∠° - -
2.14° ∠° - 0° 13' (±10')
1.66° ∠° 0° 13' (±10') -
1.50° ∠° - -
0.94° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation MODEL 176 except AMG with CODE P84 MODEL 176 AMG
BE40.20-P-1002-07U Total front axle toe at vehicle level 6.99° ∠° - -
4.73° ∠° - -
2.14° ∠° - -
1.66° ∠° - -
1.50° ∠° 0° 22' (±10') -
0.94° ∠° - 0° 21' (±10')
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 242
BE40.20-P-1002-07V Permissible difference in front axle toe between right and left side of vehicle ∠° ±10'
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 117 with code 485 Model 117 with code 486 except code 4U3/P84, model 117 with code 677
BE40.20-P-1002-07W Permissible difference in front axle toe between right and left side of vehicle ∠° ±10' ±10'
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 117 with code 486+4U3 Model 117.3 with code 486+P84
BE40.20-P-1002-07W Permissible difference in front axle toe between right and left side of vehicle ∠° ±10' ±10'
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 117 with code 482 Model 117 AMG
BE40.20-P-1002-07W Permissible difference in front axle toe between right and left side of vehicle ∠° ±10' ±10'
CHECK VALUES FOR FRONT AXLE TOE

Number Designation MODEL 176 except AMG with CODE 482 MODEL 176 except AMG with CODE 485
BE40.20-P-1003-07U Permissible difference in front axle toe between right and left side of vehicle ∠° ±10' ±10'
CHECK VALUES FOR FRONT AXLE TOE

Number Designation MODEL 176 except AMG with CODE 486, except CODE P84 MODEL 176 except AMG with CODE 677
BE40.20-P-1003-07U Permissible difference in front axle toe between right and left side of vehicle ∠° ±10' ±10'
CHECK VALUES FOR FRONT AXLE TOE

Number Designation MODEL 176 except AMG with CODE P84 MODEL 176 AMG
BE40.20-P-1003-07U Permissible difference in front axle toe between right and left side of vehicle ∠∠ ±10' ±10'
TIE ROD

Number Designation Model 117 Model 156
BA46.40-P-1002-01O Jam nut for tie rod Nm 60 60
TIE ROD

Number Designation Model 242 Model 176, 246
BA46.40-P-1002-01O Jam nut for tie rod Nm 60 60
Fig 4: Identifying Retainer Device (129 589 01 21 00)
G09976454Courtesy of MERCEDES-BENZ USA
