Remove/install shield of rack-and-pinion steering - AR46.20-P-0602NKB

MODEL 117, 156, 176, 246 with ENGINE 270, 651 (except 651.930)

MODEL 242 with ENGINE 270.920

Shown on vehicle with removed gasoline engine

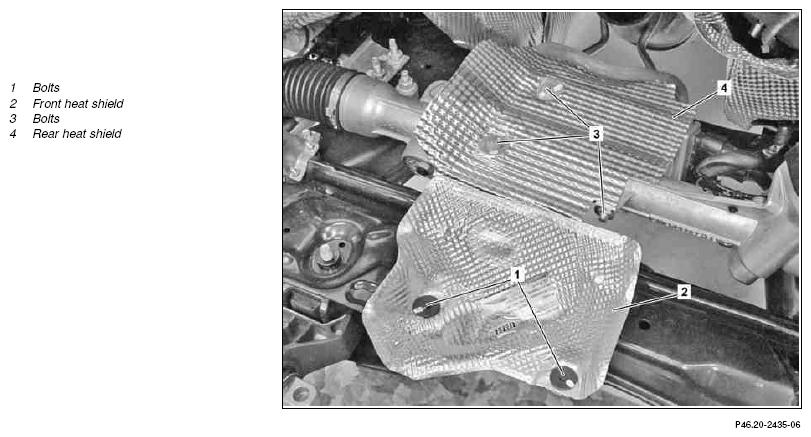

Fig 1: Rack-And-Pinion Steering Shield Remove/Install Components - Shown Without Gasoline Engine

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove bottom engine compartment paneling	MODEL 117 with ENGINE 270 MODEL 156 with ENGINE 270 MODEL 176 with ENGINE 270 MODEL 242 with ENGINE 270.920 MODEL 246 with ENGINE 270
			AR61.20-P-1105NKB
1.2	Remove bottom part of soundproofing	MODEL 117 with ENGINE 651 (except 651.930) MODEL 176 with ENGINE 651 (except 651.930) MODEL 246 with ENGINE 651 (except 651.930)
			AR94.30-P-5300NKB
2	Remove bolts (1) and remove front heat shield (2)	MODEL 117, 156, 176, 242, 246 with ENGINE 270
3	Remove bolts (3) and remove rear heat shield (4)	Bolt, heat shield to steering gear	*BA46.20-P-1002-01I
4	Install in the reverse order
