Remove/install evaporator - AR83.30-P-5540NKB

MODEL 117, 156, 176, 242, 246

Fig 1: Evaporator Remove/Install Components (1 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 2: Evaporator Remove/Install Components (2 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 3: Evaporator Remove/Install Components (3 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 4: Evaporator Remove/Install Components (4 Of 4)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove air conditioner housing		AR83.30-P-5200NKB
2	Remove heat exchanger		AR83.25-P-1100NKB

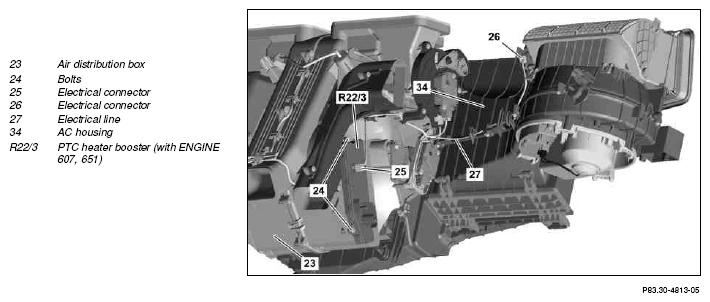

3	Disconnect electrical connector (26) from actuator motor for fresh air/air recirculation flaps
4	Unhook electrical line (27) from evaporator housing (34)
5	Remove bolts (20)
6	Remove screws/bolts (21)

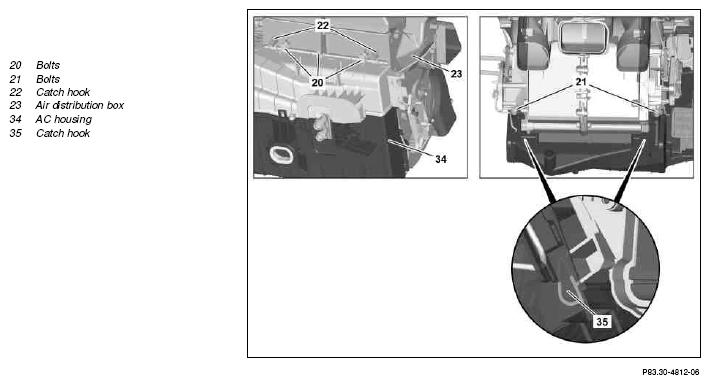

7	Release catch hook (22) of air distribution box (23) on evaporator housing (34) and remove air distribution box (23)	Firstly, hook catch hook (35) of air distribution box (23) onto evaporator housing (34).
8	Remove screws/bolts (32)

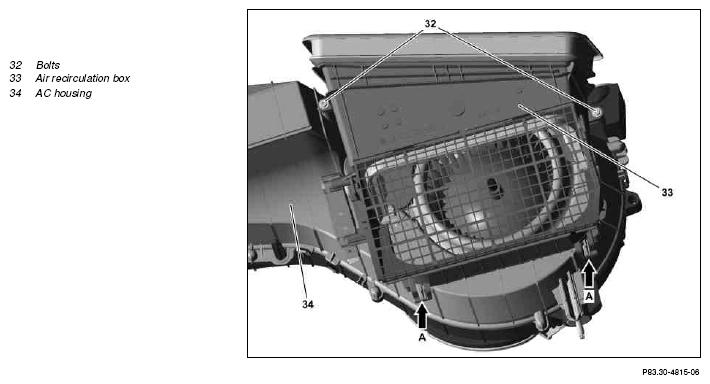

9	Remove air recirculation unit (33) from evaporator housing (34)	Insert air recirculation unit (33) into hooks first (arrows A) on evaporator housing (34).

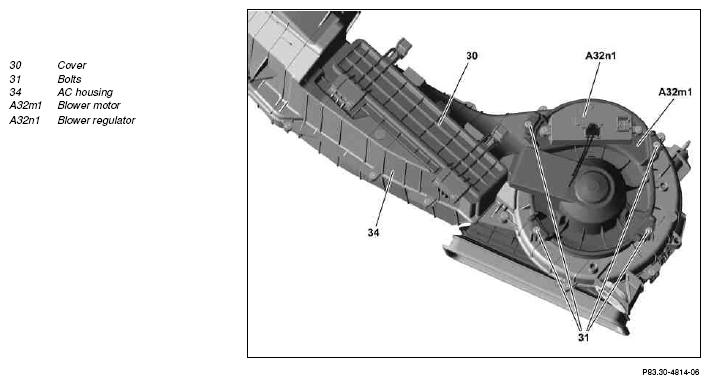

10	Remove bolts (31)
11	Remove blower motor (A32m1) from evaporator housing (34)
12	Remove cover (30) from evaporator housing (34)	The evaporator is integrated into the evaporator housing (34) and it cannot be removed separately.
13	Install in the reverse order
