Remove/install catalytic converter - AR49.10-P-5500NKX
ENGINE 270 in MODEL 156
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Open engine hood and secure against falling down | ||
| 2 | Lift vehicle on vehicle lift | AR00.60-P-1000AK | |

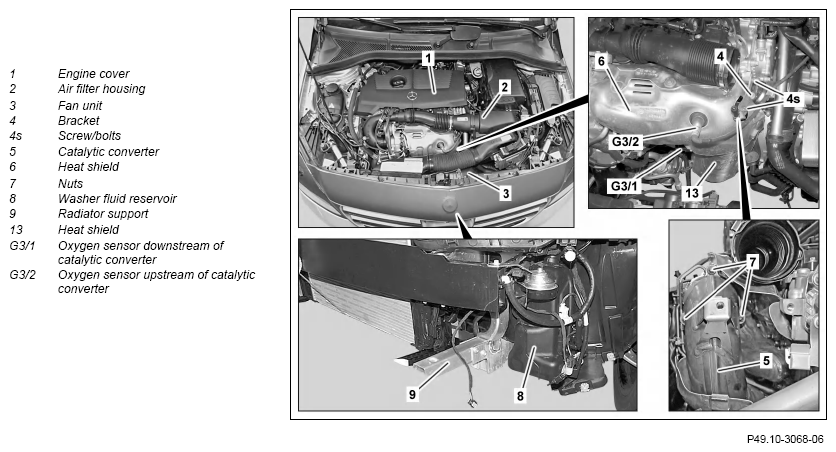

| 3 | Remove engine cover (1) | ||
| 4 | Remove air filter housing (2) | AR09.10-P-1150MT | |
| 5 | Remove fan unit (3) | AR20.40-P-5050NKB | |
| 6 | Remove oxygen sensor upstream of catalytic converter (G3/2) | AR07.52-P-5303MT | |
| 7 | Remove screw/bolts (4s) and detach bracket (4) from catalytic converter (5) on cylinder head | *BA49.10-P-1002-01AL | |
| 8 | Remove heat shield (6) over turbocharger | ||
| 9 | Unscrew nuts (7) from catalytic converter (5) at turbocharger | ||
| *BA49.10-P-1001-01AL | |||
| 10 | Attach guard plate and secure cooler against falling down | ||
| WF58.50-P-0110-01A | |||
| 11 | Remove lower engine compartment paneling | AR61.20-P-1105NKB | |
| 12 | Unfasten washer fluid reservoir (8) | ||
| 13 | Remove radiator support (9) | *BA62.30-P-1001-04D | |
| *BA62.30-P-1004-04D | |||
| 14 | Unclip the electrical connection for the oxygen sensor downstream of CAT (G3/1) on holder and disconnect electrical connection | ||

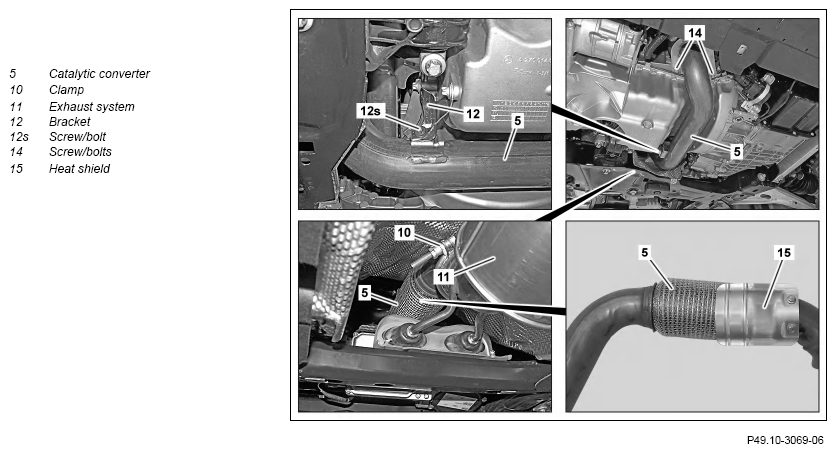

| 15 | Unfasten the clamp (10) between catalytic converter (5) and exhaust system (11) | ||
| *BA49.10-P-1005-01AL | |||
| 16 | Remove screw/bolt (12s) at bracket (12) | *BA49.10-P-1003-01AL | |
| 17 | Remove screw/bolts (14) on bracket. | *BA49.10-P-1004-01AL | |

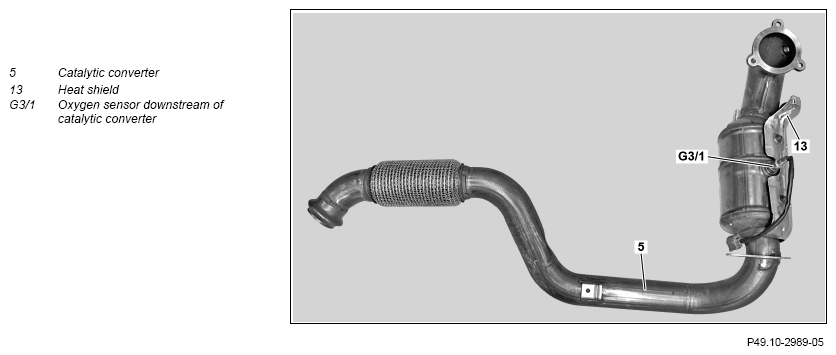

| 18 | Remove two-piece heat shield (13) on catalytic converter (5) | ||
| 19 | Remove heat shield (15) on catalytic converter (5) | ||
| 20 | Take out catalytic converter (5) | ||
| 21 | Remove oxygen sensor downstream of catalytic converter (G3/1) | Only if catalytic converter (5) is replaced. | |
| AR07.52-P-5303MT | |||
| 22 | Install in the reverse order | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 23 | Carry out an engine test run and check exhaust system for leaktightness |
EXHAUST SYSTEM
| Number | Designation | ENGINE 270 in MODEL 156 | |
|---|---|---|---|
| BA49.10-P-1001-01AL | Nut/bolt, exhaust system at front to turbocharger | Nm | 25 |
EXHAUST SYSTEM
| Number | Designation | ENGINE 270 in MODEL 156 | |
|---|---|---|---|
| BA49.10-P-1002-01AL | Bolt, front exhaust system holder to front exhaust system/cylinder head | Nm | 25 |
EXHAUST SYSTEM
| Number | Designation | ENGINE 270 in MODEL 156 | |
|---|---|---|---|
| BA49.10-P-1003-01AL | Bolt, front exhaust system holder to front exhaust system/oil pan | Nm | 25 |
EXHAUST SYSTEM
| Number | Designation | ENGINE 270 in MODEL 156 | |
|---|---|---|---|
| BA49.10-P-1004-01AL | Bolt, front exhaust system holder to front exhaust system/crankcase | Nm | 25 |
EXHAUST SYSTEM
| Number | Designation | ENGINE 270 in MODEL 156 | |
|---|---|---|---|
| BA49.10-P-1005-01AL | Clamp, center muffler or diesel particulate filter to front exhaust system | Nm | 25 |
RADIATOR SUPPORT
| Number | Designation | MODEL 156 | |
|---|---|---|---|
| BA62.30-P-1001-04D | Bolt, radiator support to longitudinal member | Nm | 20 |
RADIATOR SUPPORT
| Number | Designation | MODEL 156 | |
|---|---|---|---|
| BA62.30-P-1004-04D | Bolt, connecting carrier to front axle carrier | Nm | 16 |
