Remove/install trim at C-pillar - AR68.30-P-4490NKX

MODEL 156

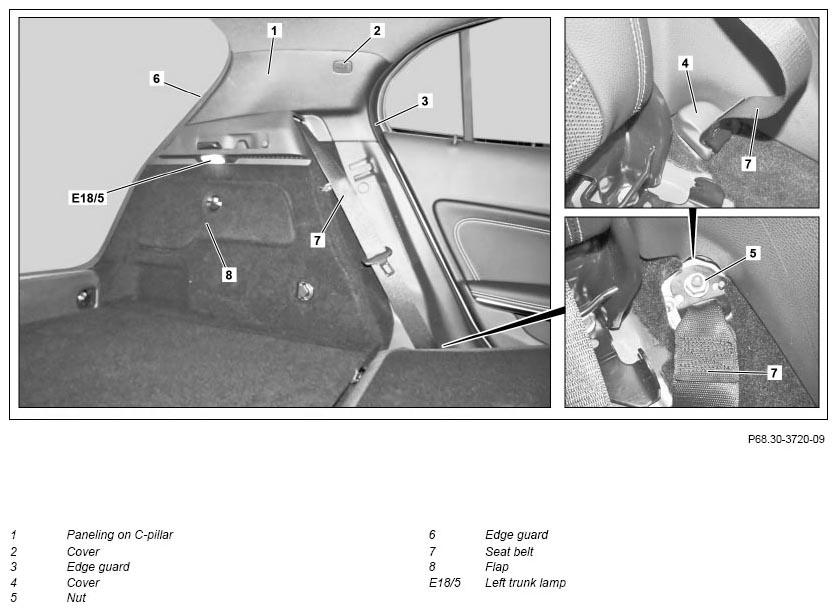

Fig 1: C-Pillar Trim Remove/Install Components

Courtesy of MERCEDES-BENZ USA

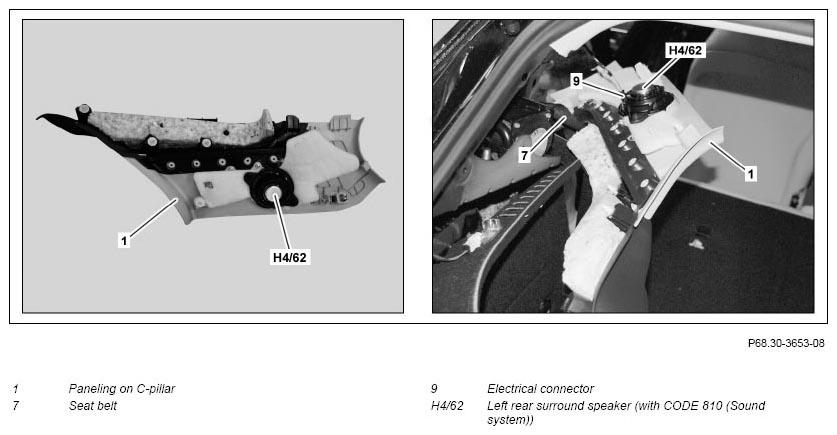

Shown on model 176 with CODE 810 (Sound system)

Fig 2: C-Pillar Trim Remove/Install Components - Shown On Model 176 With Code 810 (Sound System)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Adjust left or right front seat toward front
2	Remove load compartment cover
3	Remove cover (4) and unscrew nut (5) from belt end fitting	Nut, rear belt buckle/belt end fitting to body/pivot bearing	*BA91.40-P-1009-01S
4	Fold over left or right rear seat backrest
5	Loose edge guard (3) in area of paneling (1)
6	Unclip cover (2)	Insert cover (2) into paneling (1) with associated clip.
		Clip remover	Figure
8	Unclip paneling (1)	Removal:  Do not detach edge guard (6). Ensure that edge guard (6) is seated correctly.
		Clip remover	Figure
9	Disconnect electrical connector (9) from left rear surround speaker (H4/62) or right rear surround speaker	MODEL 156 with CODE 810 (Sound system)
10	Remove paneling (1)	Guide seat belt (7) through paneling (1). Insert cover (2) into paneling (1) with associated clip. Open flap (8) and slightly pull paneling away from C-pillar.
11	Unclip left rear surround speaker (H4/62) or right rear surround speaker and remove	MODEL 156 with CODE 810 (Sound system) When replacing paneling (1).
12	Prepare paneling (1) on C-pillar for installing left rear surround speaker (H4/62) or right rear surround speaker	When replacing paneling (1).
		Prepare C-pillar paneling for installation of speaker. MODEL 156 with CODE 810 (Sound system)	AR68.30-P-4490-01A
	Fabricate template for installing speakers in C-pillar trim	MODEL 156 with CODE 810 (Sound system)	WF58.50-P-6830-03A
13	Install in reverse order

Fig 3: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
