Remove/Install Rear Suspension Strut - AR32.25-P-1016GWX

Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42)

Model 463.255 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x42)

Model 463.274 up to model year 2019 with code LQ0 (G650 Landaulet)

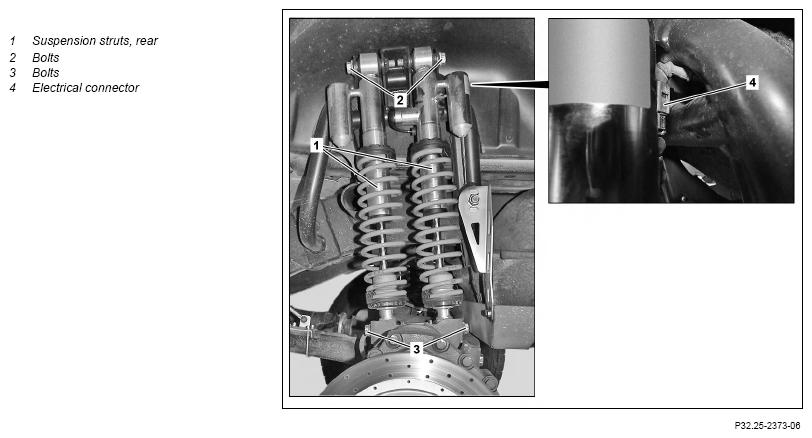

Fig 1: Rear Suspension Strut Components Location - Model 463.255 With Code MUK2 Up To Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Remove left or right rear wheel and tire assembly		AR40.10-P-1100GWX
2	Support rear axle
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
3	Remove bolts (3)	Bolt, suspension strut to rear axle/frame	*BA32.25-P-1002-04R
4	Lower rear axle or raise vehicle until the rear suspension struts (1) can be pulled out of the brackets
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
5	Pull rear suspension struts (1) at left or right out of brackets
6	Detach electrical connection (4) at left or right
7	Unscrew screws/bolts (2)	Bolt, suspension strut to rear axle/frame	*BA32.25-P-1002-04R
8	Pull rear suspension struts (1) at left or right out of brackets and remove downwards
9	Install in the reverse order
