Remove/Install Anti-Roll Bar On Rear Axle - AR32.35-P-2210GX

Model 461

Model 463 up to model year 2019

Shown on right side of vehicle

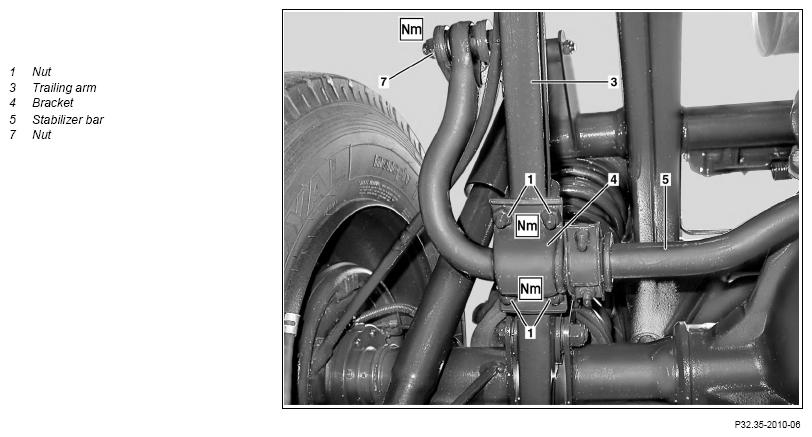

Fig 1: Rear Stabilizer Bar Components Location (Shown On Right Side Of Vehicle) - Model 463 Up To Model Year 2019

Courtesy of MERCEDES-BENZ USA

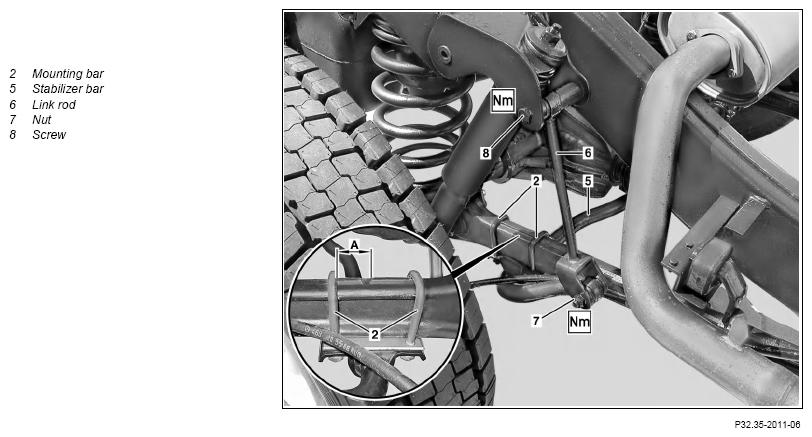

Shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Raise vehicle	Model 461 Model 463 up to model year 2019	AR00.60-P-1000G
2	Unscrew nuts (1)	Replace self-locking nuts (1). Nut, stabilizer bar mounting bar to trailing arm, Nut, stabilizer bar mounting bar to trailing arm	*BA32.35-P-1001-01A
3	Detach bracket (4) and mounting bar (2) from trailing arm (3)	Make sure that the mounting bracket (2) is seated correctly because in some models the mounting bracket (2) must be relocated towards the rear by the dimension (A).
4	Loosen bolt (8) and remove anti-sway bar (5) with link rod (6)	Install new self-locking nuts. Nut, stabilizer bracket to frame, Nut, stabilizer bracket to frame	*BA32.35-P-1003-01A
5	Detach link rod (6) from anti-sway bar (5)	When replacing the stabilizer bar (5) Install new self-locking nut (7). Nut, stabilizer bar to stabilizer bracket, Nut, stabilizer bar to stabilizer bracket	*BA32.35-P-1002-01A
	Check
6	Check rubber mounts for wear and damage and replace if necessary
7	Install in the reverse order
