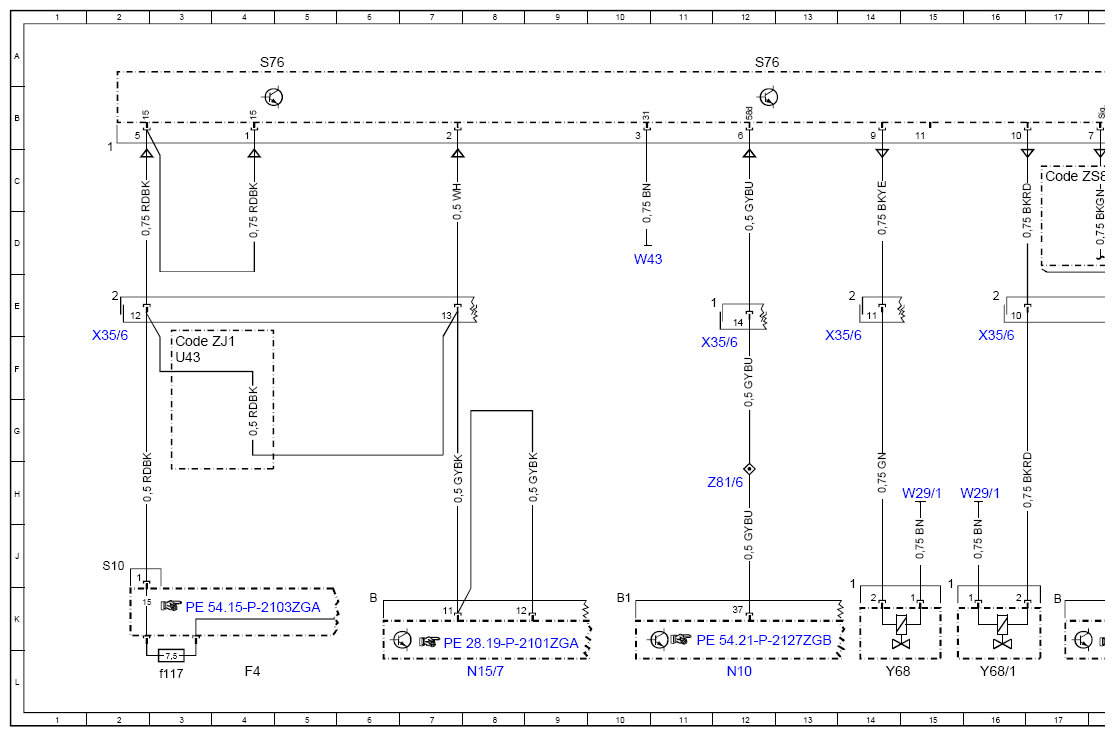

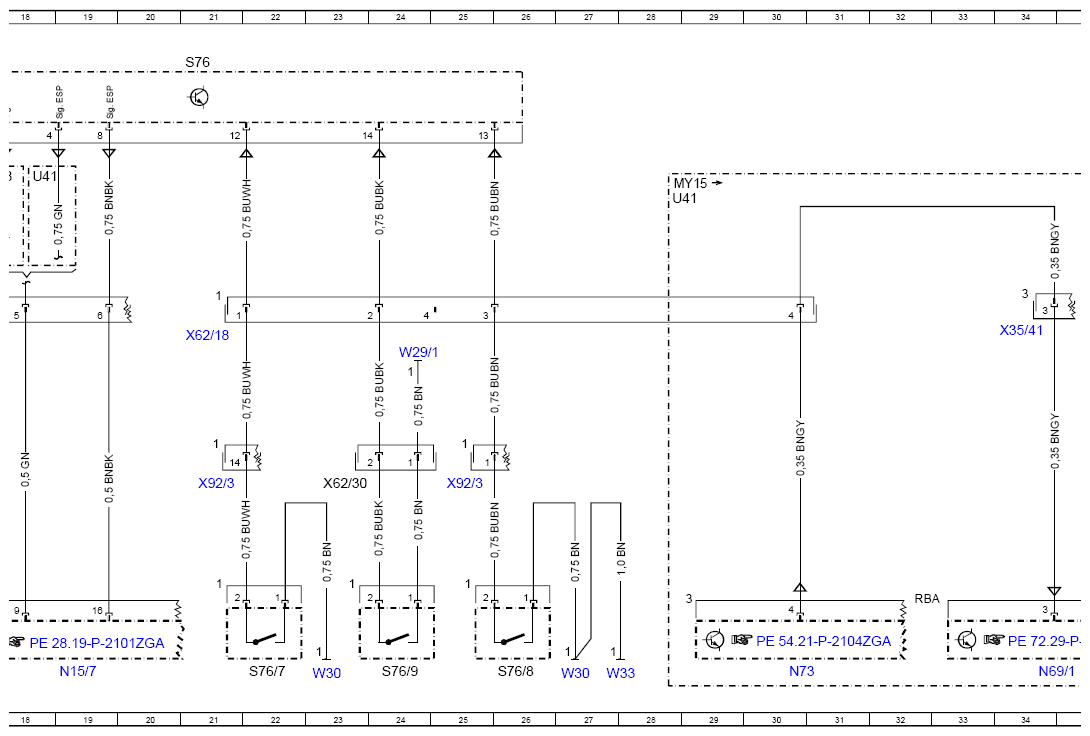

Wiring Diagram Of Rear Differential Lock System - PE35.40-P-2000-97ZGA
Model 463 with rear axle 742.6 as of model year 2013 up to model year 2019
with code A71 (Differential lock rear axle)
except code 979 (Special protection MB Guard) /YoM 12 model refinement package up to YoM 18 model refinement package
| Code: | Designation: | Position: |
|---|---|---|

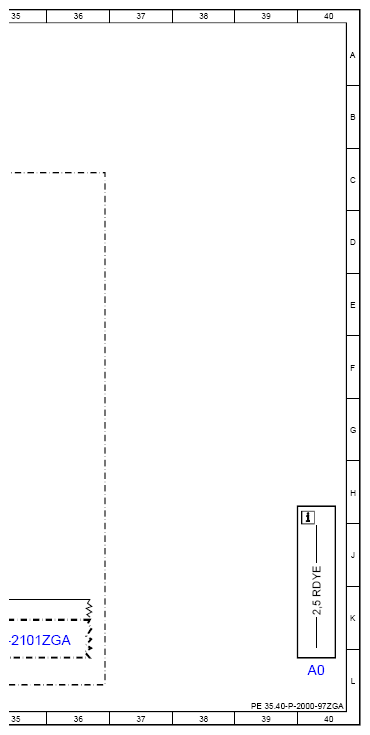

| AO | Color code key | 40L |
| Code ZJ1 | Japan version | 3F |
| Code ZS8 | Protection class VR7/glass area VR9 | 17C |
| F4 | Rear fuse and relay module | 4L |
| F4f117 | Fuse 117 | 3L |
| N10 | SAM control unit | 12L |
| N15/7 | Transfer case control unit | 19L |
| N15/7 | Transfer case control unit | 8L |
| N69/1 | Left front door control unit | 34L |
| N73 | Electronic ignition switch control unit | 30L |
| S76 | Differential lock button group | 4A |
| S76 | Differential lock button group | 12A |
| S76 | Differential lock button group | 21A |
| S76/7 | Differential lock indicator switch, inter axle differential | 22L |
| S76/8 | Differential lock indicator switch, rear axle | 26L |
| S76/9 | Differential lock indicator switch, front axle | 24L |
| U41 | Not valid for code ZS8 Protection class VR7/glass area VR9 | 18C |
| U41 | Not valid for code ZS8 Protection class VR7/glass area VR9 | 28C |
| U43 | Valid for ECE | 3F |
| W29/1 | A-pillar ground connection, left | 24F |
| W29/1 | A-pillar ground connection, left | 15H |
| W29/1 | A-pillar ground connection, left | 16H |
| W30 | Frame ground point | 27L |
| W30 | Frame ground point | 23L |
| W33 | Tank access ground point | 27L |
| W43 | Ground point (firewall) | 10D |
| X35/41 | Driver door connecting point | 34E |
| X35/6 | Instrument panel and module box electrical connector | 12F |
| X35/6 | Instrument panel and module box electrical connector | 14F |
| X35/6 | Instrument panel and module box electrical connector | 16F |
| X35/6 | Instrument panel and module box electrical connector | 2F |
| X62/18 | Front axle differential lock readiness indicator electrical connector (4-pin) | 21F |
| X62/30 | Front axle differential lock indicator switch electrical connector (2-pin) | 23H |
| X92/3 | Vehicle frame electrical connector (22-pin) | 25H |
| X92/3 | Vehicle frame electrical connector (22-pin) | 21H |
| Y68 | Differential lock control solenoid valve, transfer case | 14L |
| Y68/1 | Differential lock control solenoid valve, rear axle | 16L |
| Z81/6 | Circuit 58d connector sleeve | 12H |
