(Adjust Shift Cylinder For Differential Lock Of Front Axle - AR33.40-P-0406-01A)

Model 460

with code A70 (Differential lock, front axle)

Model 461 (except 461.331)

with code A70 (Differential lock, front axle)

Model 463 (except 463.270/271)

up to model year 2013

with code A70 (Differential lock, front axle)

DIFFERENTIAL LOCK SHIFT CYLINDER

Number	Designation		Model 460, 461	Model 463 up to model year 2019
BA33.40-P-1003-01A	Bolt, shift cylinder to axle tube	Nm	25	25

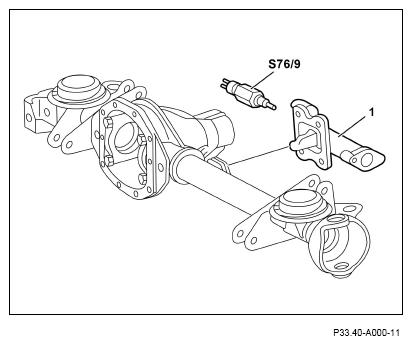

Attach shift cylinder (1) to axle tube and tighten screws of shift cylinder (1) lightly by hand.
The shift cylinder (1) must still be able to be moved easily by hand.
Operate shift cylinder (1) and engage dog clutch.
Slide shift cylinder (1) up to noticeable end stop of dog clutch.
The inner spring must not be tensioned during this process. The shift cylinder (1) must not move back when released.
Tighten screws of shift cylinder (1) .
