Front Axle - Oil Change - AP33.00-P-3301G

Model 460, 461

Model 463

up to model year 2019

Modification notes

Courtesy of MERCEDES-BENZ USA

Shown: Model 463.348

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Preparatory activity
1	Lift vehicle with lifting platform.
		Vehicle must be horizontal. Otherwise, the front axle differential is not filled correctly and an incorrect oil filling capacity could lead to leakage and material damage.	AR00.60-P-1000G
	Clean

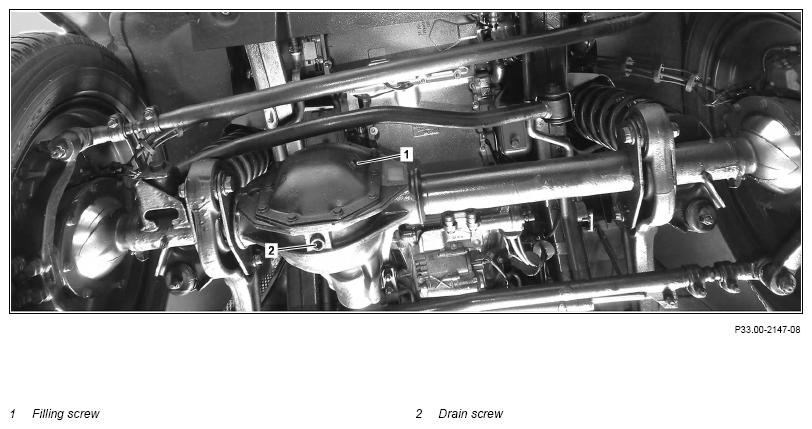

2	Clean area surrounding filling screw (1) and drain screw (2).
	Remove
3	Remove filling screw (1).
	Drain off
4	Remove drain screw (2) and drain oil from front axle differential.
	Clean
5	Clean drain bore in front axle differential.	Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
	Install
6	Apply a drop of sealant to start of lower thread of the new drain screw (2), and then immediately tighten new drain screw (2).	Replace drain screw (2) each time it is removed. Otherwise, this may lead to leakage and consequential damage. Sealant, Omnifit 100H (50 g)	*BR00.45-Z-1061-01A
		Drain screw at front axle housing	*BA33.30-P-1002-01A
	Pour in
7	Add defined oil filling capacity.	Model 463.225 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) Model 463.234 up to model year 2019 with code ZQ0 (G 500 4x42 ) Model 463.243/246/270/271/272/273/274/275 up to model year 2019 Use only approved oils as per "SAE 75W-140 Limited Slip". Damage can otherwise occur. Model 460, 461, 463Hypoid gear oil	*BF33.30-P-1001-01A
	Clean
8	Clean filler bore in front axle differential.	Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
	Install
9	Apply a drop of sealant to start of lower thread of the new filling screw (1), and then immediately tighten new filling screw (1).	Replace filling screw (1) each time it is removed. Otherwise, this may lead to leakage and consequential damage. Sealant, Omnifit 100H (50 g)	*BR00.45-Z-1061-01A
		Oil filler screw at front axle housing	*BA33.30-P-1001-01A
	Finishing activity
10	Lower vehicle with vehicle lift.
			AR00.60-P-1000G
