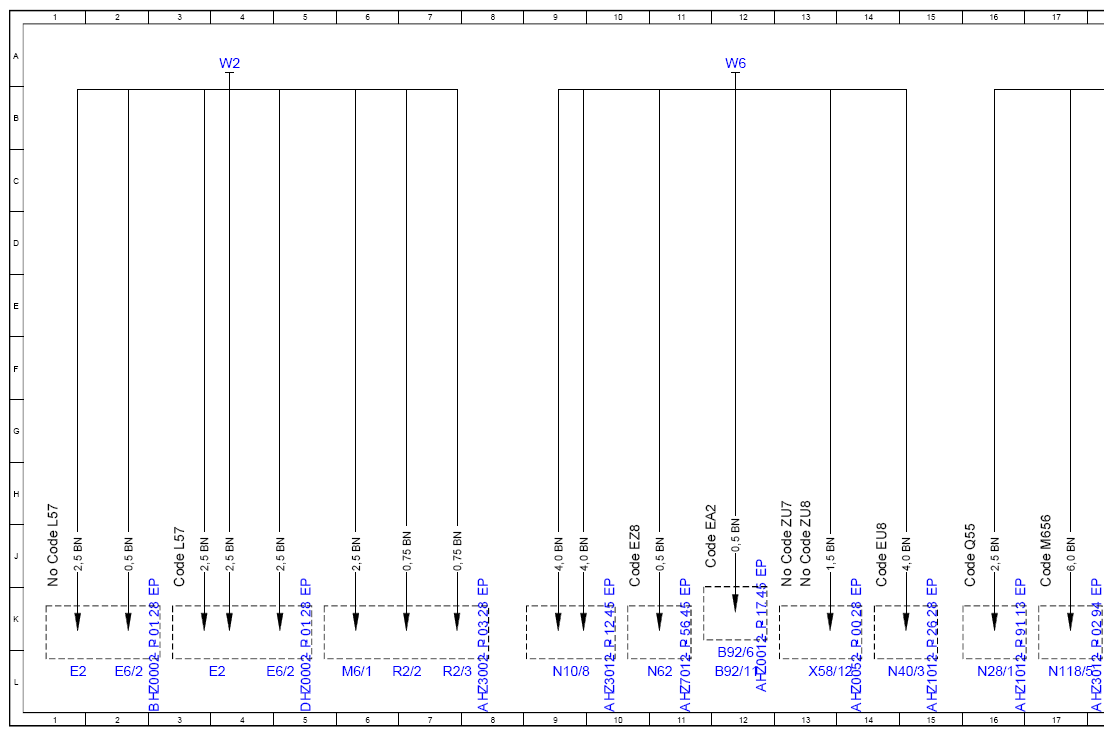

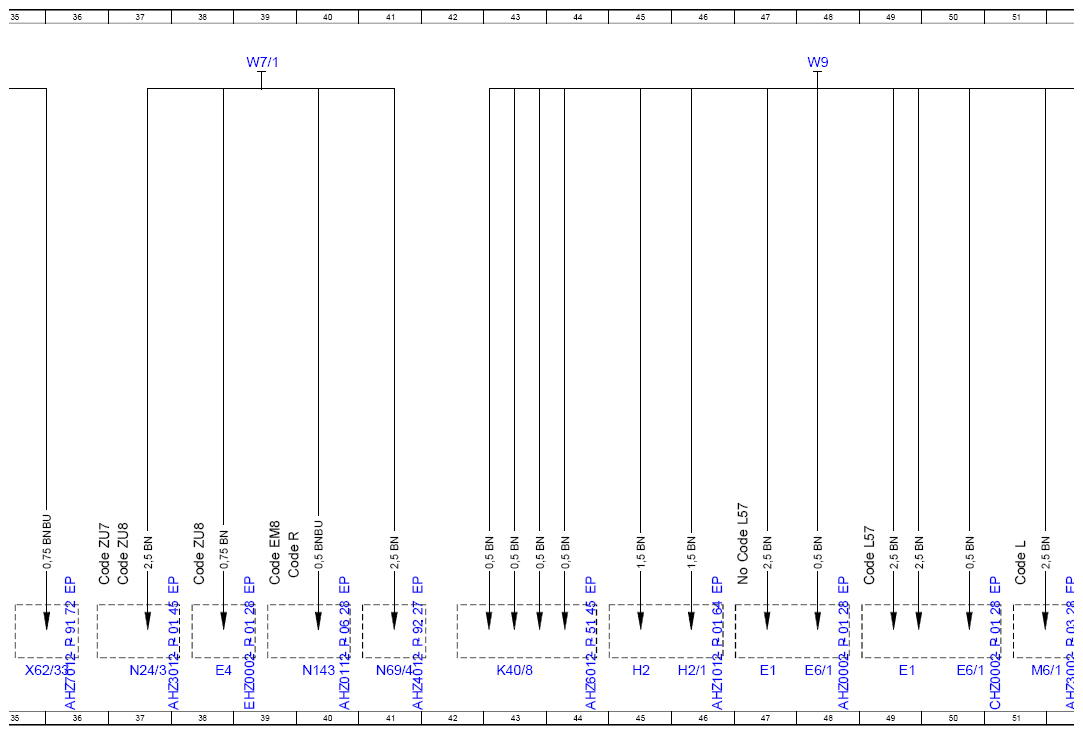

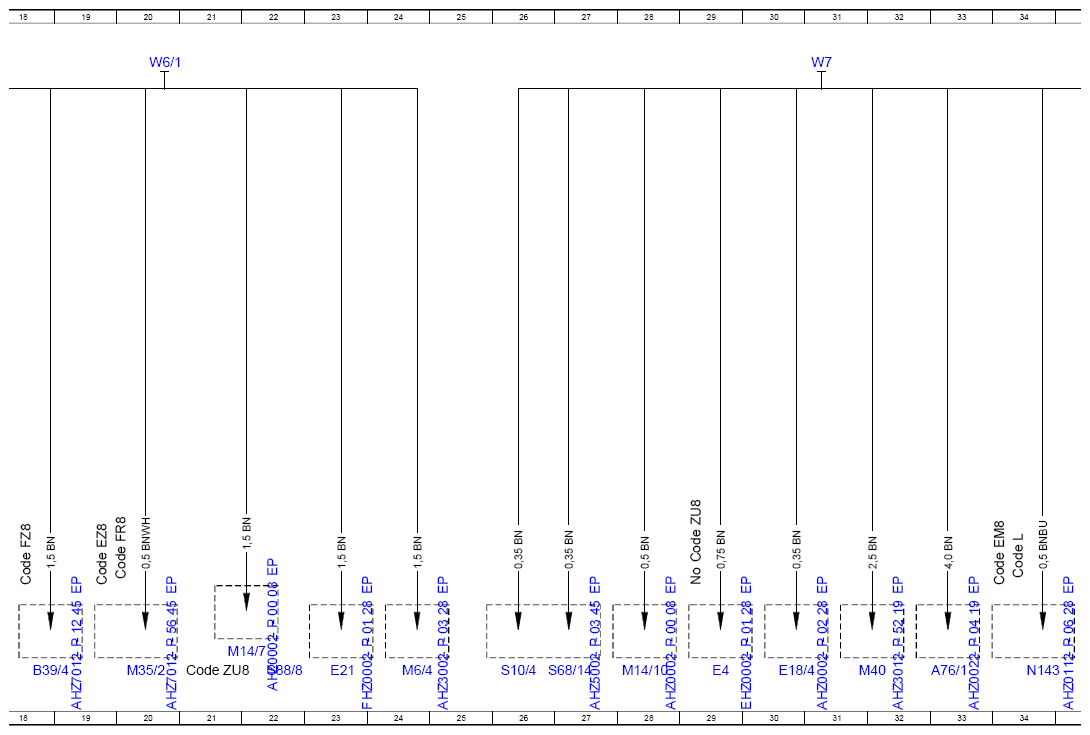

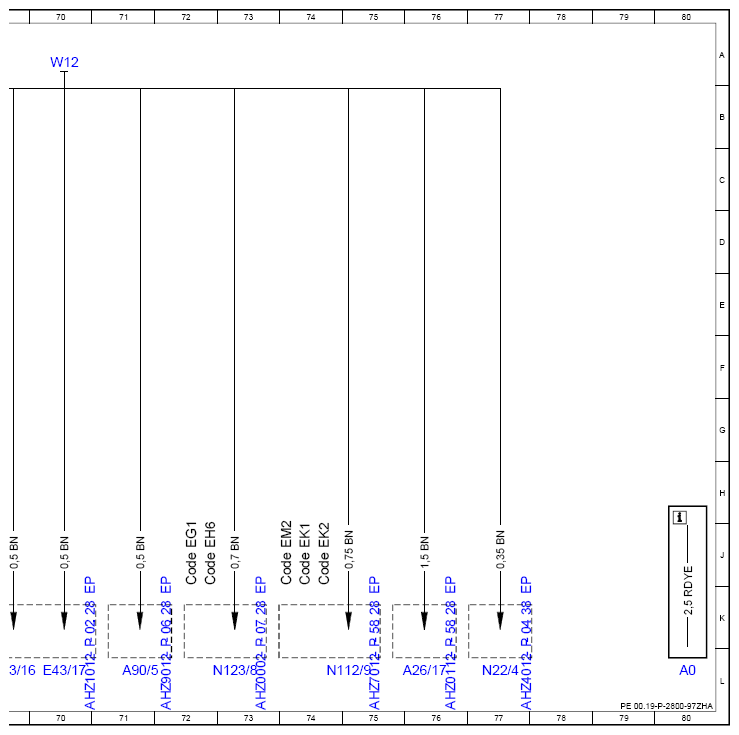

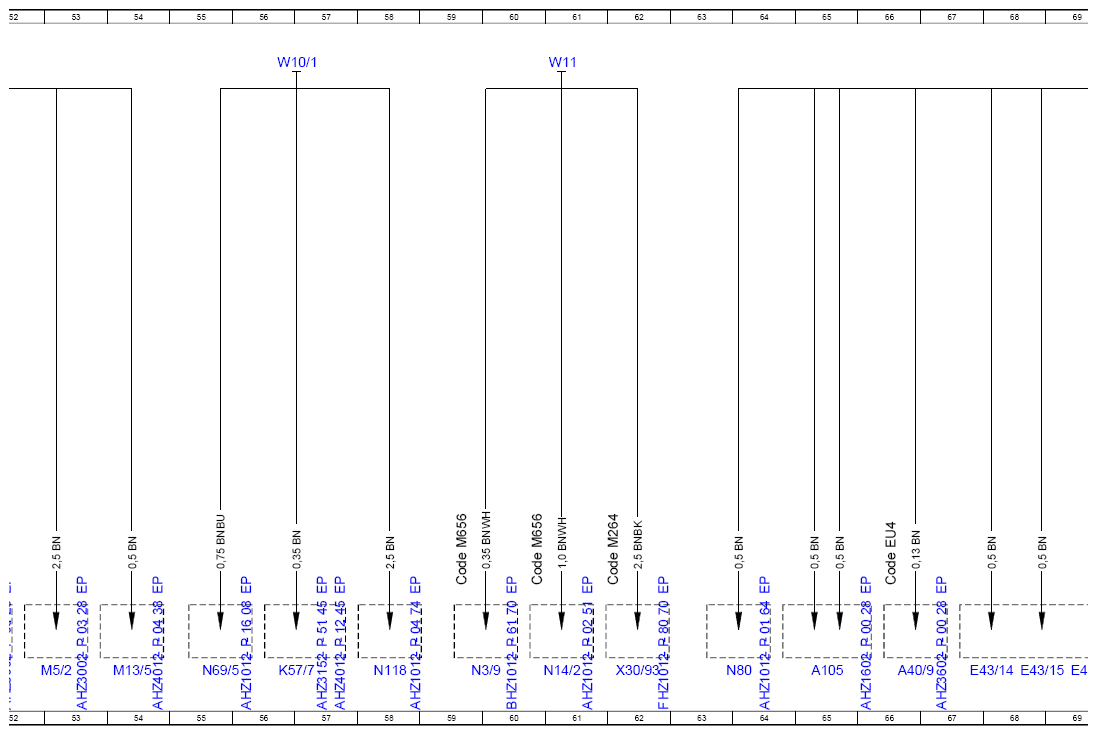

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97ZHA
Model 463 (except 463.342)
as of model year 2019
W2, W6, W6/1, W7, W7/1, W9, W10/1, W11, W12
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A105 | Touchpad | 65L |
| A26/17 | Head unit | 76L |
| A40/9 | Audio/COMAND control panel | 66L |
| A76/1 | Right front reversible emergency tensioning retractor | 33L |
| A90/5 | Multimedia connection unit | 71L |
| B39/4 | Rear window glass breakage sensor | 18L |
| B92/11 | Left outer rear bumper integrated radar sensor | 12L |
| B92/6 | Right outer rear bumper integrated radar sensor | 12L |
| Code EA2 | Blind spot assist | 12J |
| Code EG1 | Car telephony | 72J |
| Code EH6 | Multifunction telephony | 72J |
| Code EK1 | HERMES LTE communications module | 74J |
| Code EK2 | HERMES - UMTS Russia communications module | 74J |
| Code EM2 | HERMES UMTS communications module | 74J |
| Code EM8 | TV tuner | 34J |
| Code EM8 | TV tuner | 39J |
| Code EU4 | COMAND Online | 66J |
| Code EU8 | Burmester® surround sound system | 14J |
| Code EZ8 | PARKING ASSIST PARKTRONIC | 10J |
| Code EZ8 | PARKING ASSIST PARKTRONIC | 19J |
| Code FR8 | Backup camera | 20J |
| Code FZ8 | Alarm system | 18J |
| Code L | LEFT-HAND DRIVE | 34J |
| Code L | LEFT-HAND DRIVE | 51J |
| Code L57 | IHC Light | 1J |
| Code L57 | IHC Light | 3J |
| Code L57 | IHC Light | 47J |
| Code L57 | IHC Light | 49J |
| Code M264 | R4 spark-ignition engine M264 | 62J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 17J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 59J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 60J |
| Code Q55 | Trailer coupling, ball head | 16J |
| Code R | RIGHT-HAND DRIVE | 40J |
| Code ZU7 | Canada national version | 13J |
| Code ZU7 | Canada national version | 37J |
| Code ZU8 | USA national version | 13J |
| Code ZU8 | USA national version | 21L |
| Code ZU8 | USA national version | 29J |
| Code ZU8 | USA national version | 37J |
| Code | Code ZU8 | USA national version |
| E1 | Left front lamp unit | 47L |
| E1 | Left front lamp unit | 49L |
| E18/4 | Left load compartment lamp | 30L |
| E2 | Right front lamp unit | 1L |
| E2 | Right front lamp unit | 4L |
| E21 | Center stop lamp | 23L |
| E4 | Right rear lamp unit | 29L |
| E4 | Right rear lamp unit | 38L |
| E43/14 | Left front center console ambiance illumination | 67L |
| E43/15 | Left rear center console ambiance illumination | 68L |
| E43/16 | Right front center console ambiance illumination | 69L |
| E43/17 | Right rear center console ambiance illumination | 70L |
| E6/1 | Left turn signal lamp | 48L |
| E6/1 | Left turn signal lamp | 50L |
| E6/2 | Right turn signal lamp | 2L |
| E6/2 | Right turn signal lamp | 4L |
| H2 | Horn 1 | 45L |
| H2/1 | Horn 2 | 46L |
| K40/8 | Engine fuse and relay module | 43L |
| K57/7 | Engine compartment prefuse box battery disconnect switch relay | 56L |
| M13/5 | Heater circuit coolant circulation pump | 54L |
| M14/10 | Tank cap central locking motor | 28L |
| M14/7 | Rear-end door central locking motor | 21L |
| M35/2 | Rear camera cover motor | 20L |
| M40 | Multicontour seat pneumatic pump | 31L |
| M5/2 | Headlamp cleaning system pump | 53L |
| M6/1 | Wiper motor | 6L |
| M6/1 | Wiper motor | 51L |
| M6/4 | Rear-end door wiper motor | 24L |
| N10/8 | Rear SAM control unit | 9L |
| N112/9 | HERMES control unit | 74L |
| N118 | Fuel pump control unit | 58L |
| N118/5 | AdBlue® control unit | 17L |
| N123/8 | Mobile phone cradle control unit | 73L |
| N14/2 | Glow output stage | 61L |
| N143 | TV tuner control unit | 34L |
| N143 | TV tuner control unit | 40L |
| N22/4 | Rear AC control unit | 77L |
| N24/3 | DC/AC converter control unit | 37L |
| N28/1 | Trailer recognition control unit | 16L |
| N3/9 | CDI control unit | 59L |
| N40/3 | Sound system amplifier control unit | 14L |
| N62 | Parking system control unit | 11L |
| N69/4 | Right rear door control unit | 41L |
| N69/5 | KEYLESS-GO control unit | 55L |
| N80 | Steering column module control unit | 64L |
| R2/2 | Left spray nozzle heater | 7L |
| R2/3 | Right spray nozzle heater | 7L |
| S10/4 | Right rear brake wear sensor | 26L |
| S68/14 | Center rear seat belt buckle switch | 27L |
| S88/8 | Rear-end door external operation switch | 22L |
| W10/1 | Electronics ground point | 56A |
| W11 | Combustion engine ground point | 61A |
| W12 | Ground point (center console) | 70A |
| W2 | Right front ground point with lamp unit | 4A |
| W6 | Left rear wheel well ground point | 12A |
| W6/1 | Left tail lamp rear-end door ground point | 20A |
| W7 | Right wheel arch rear-end door ground point | 31A |
| W7/1 | Right tail lamp rear-end door ground point | 39A |
| W9 | Left front ground point with lamp unit | 48A |
| X30/93 | Circuit 31 potential distributor 2 | 62L |
| X58/12 | Load compartment socket | 13L |
| X62/33 | Rear axle electrical connector, right distributor | 35L |
