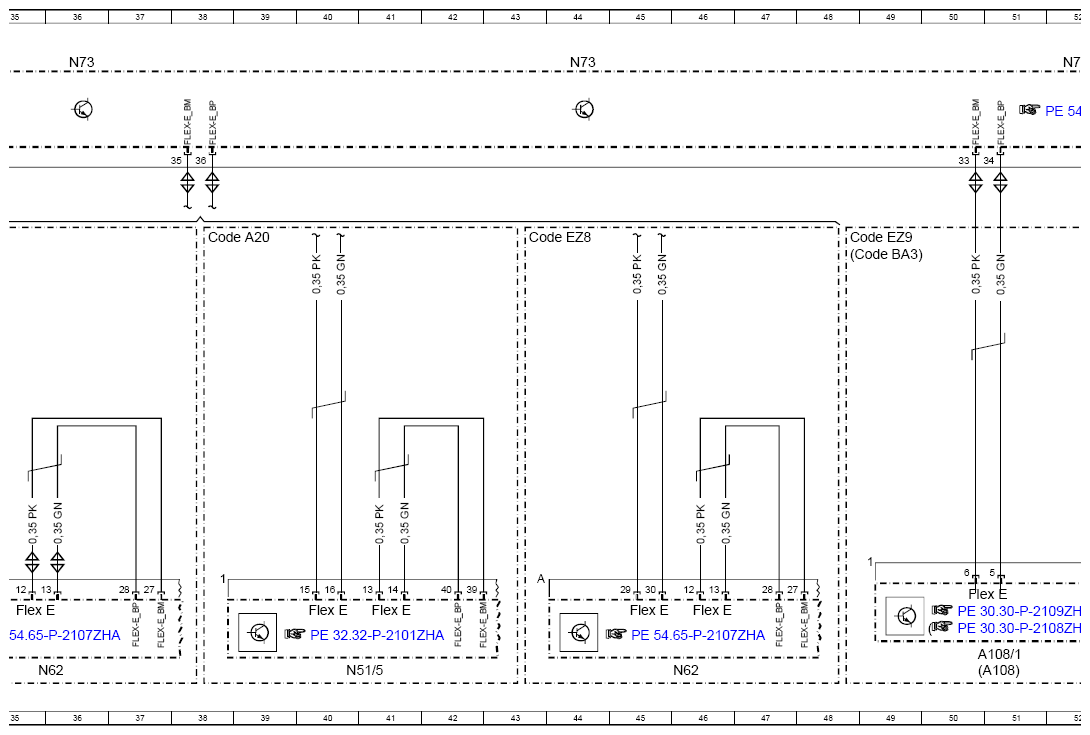

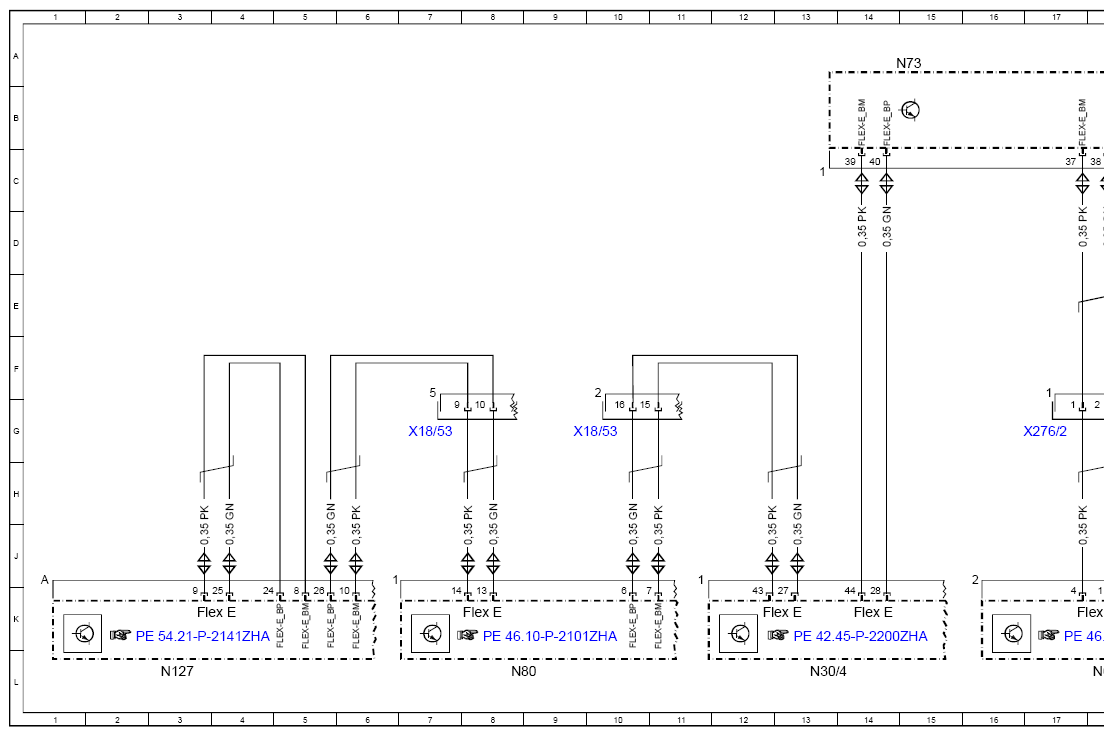

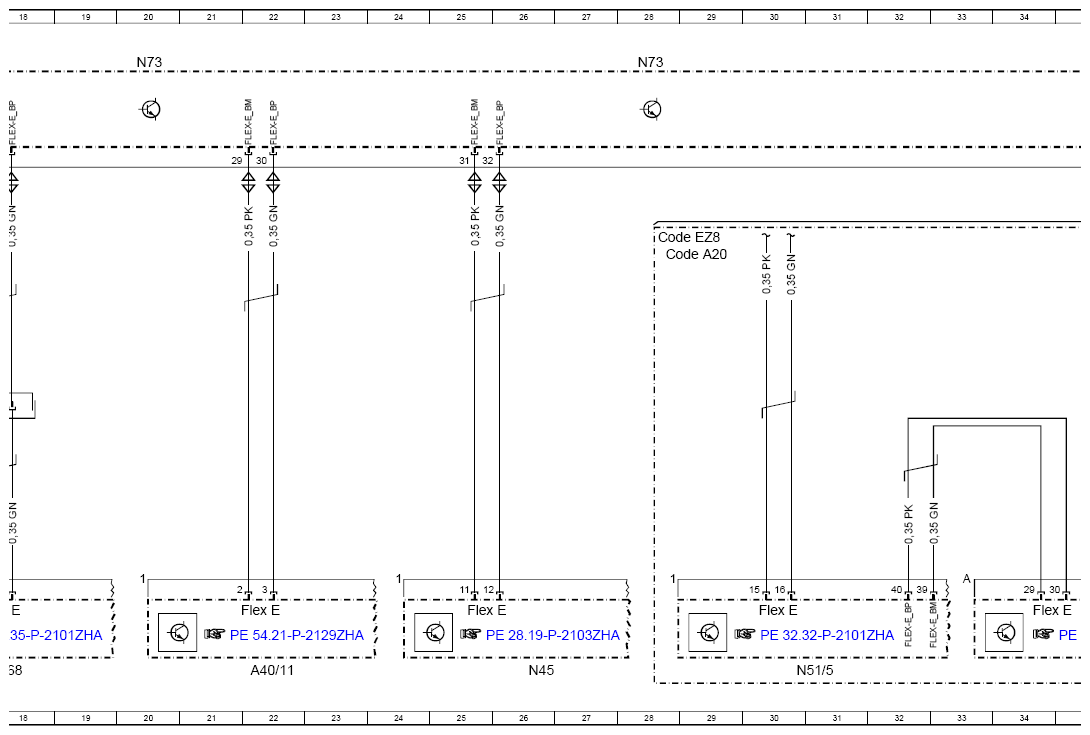

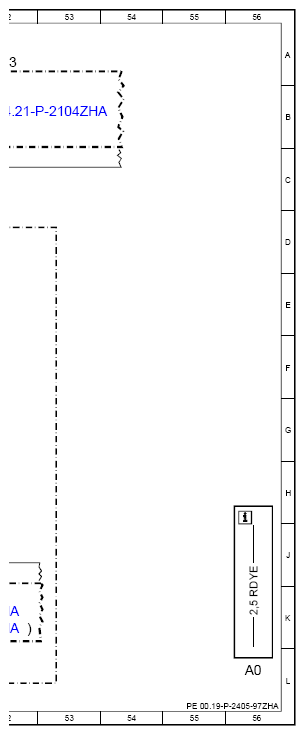

Wiring Diagram Of Chassis Flexray - PE00.19-P-2405-97ZHA
Model 463 (except 463.342)
as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A108 | Active Brake Assist controller unit | 51L |
| A108/1 | Active Distance Assist DISTRONIC electric controller unit | 51L |
| A40/11 | Mono multifunction camera | 22L |
| Code A20 | Adjustment damping | 28D |
| Code A20 | Adjustment damping | 38D |
| Code BA3 | BAS PLUS Brake Assist System | 48D |
| Code EZ8 | PARKING ASSIST PARKTRONIC | 28D |
| Code EZ8 | PARKING ASSIST PARKTRONIC | 43D |
| Code EZ9 | Active Distance Assist DISTRONIC | 48D |
| Flex E | Chassis FlexRay | 3K |
| Flex E | Chassis FlexRay | 8K |
| Flex E | Chassis FlexRay | 14K |
| Flex E | Chassis FlexRay | 12K |
| Flex E | Chassis FlexRay | 22K |
| Flex E | Chassis FlexRay | 17K |
| Flex E | Chassis FlexRay | 40K |
| Flex E | Chassis FlexRay | 35K |
| Flex E | Chassis FlexRay | 34K |
| Flex E | Chassis FlexRay | 30K |
| Flex E | Chassis FlexRay | 25K |
| Flex E | Chassis FlexRay | 45K |
| Flex E | Chassis FlexRay | 46K |
| Flex E | Chassis FlexRay | 41K |
| Flex E | Chassis FlexRay | 50K |
| N127 | Drivetrain control unit | 3L |
| N30/4 | Electronic Stability Program control unit | 13L |
| N45 | All-wheel drive control unit | 26L |
| N51/5 | Adaptive damping system control unit | 31L |
| N51/5 | Adaptive damping system control unit | 40L |
| N62 | Parking system control unit | 35L |
| N62 | Parking system control unit | 46L |
| N68 | Electrical power steering control unit | 18L |
| N73 | Electronic ignition switch control unit | 15A |
| N73 | Electronic ignition switch control unit | 20A |
| N73 | Electronic ignition switch control unit | 28A |
| N73 | Electronic ignition switch control unit | 36A |
| N73 | Electronic ignition switch control unit | 44A |
| N73 | Electronic ignition switch control unit | 52A |
| N80 | Steering column module control unit | 8L |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 7G |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 10G |
| X276/2 | Electric power steering electrical connector | 17G |
