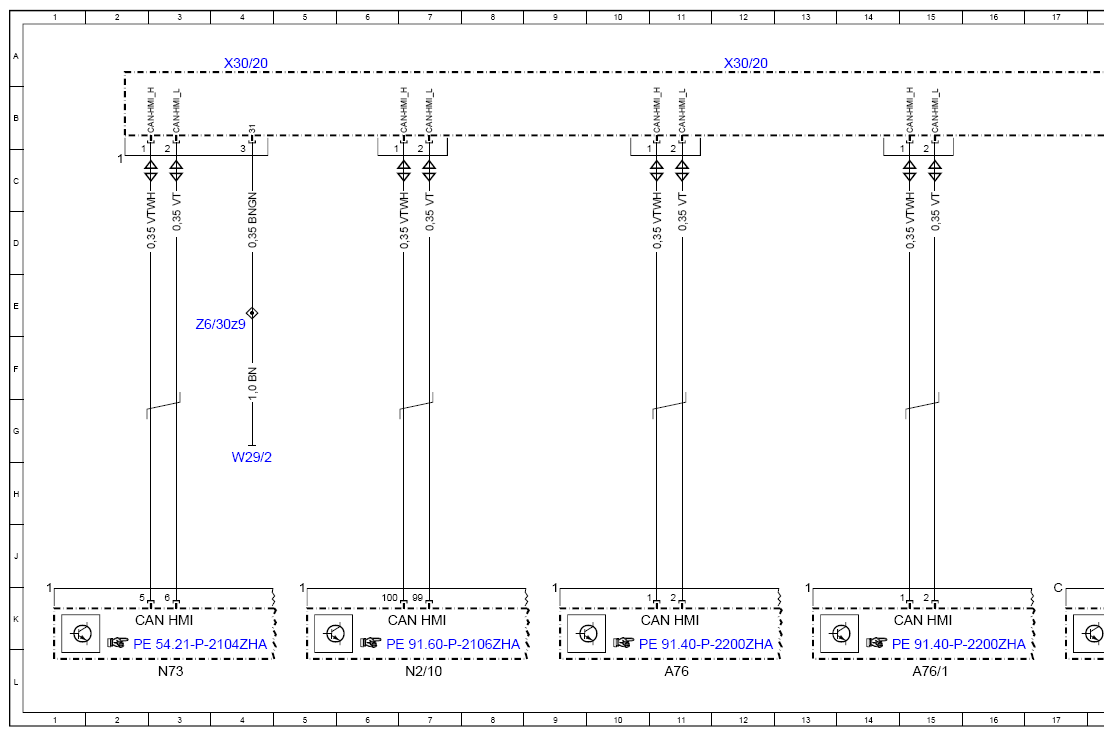

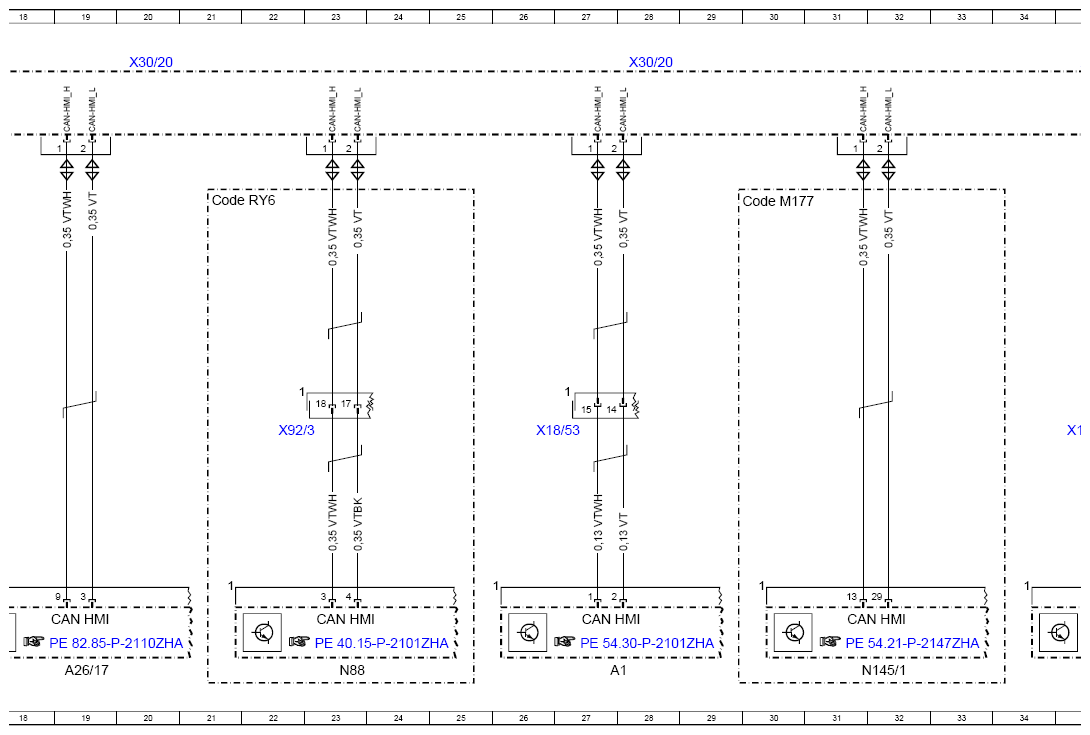

Wiring Diagram For User Interface CAN - PE00.19-P-2145-97ZHA
Model 463 (except 463.342)
as of model year 2019
Potential distributor X30/20
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A1 | Instrument cluster | 27L |
| A26/17 | Head unit | 19L |
| A76 | Left front reversible emergency tensioning retractor | 11L |
| A76/1 | Right front reversible emergency tensioning retractor | 15L |
| CAN HMI | User interface CAN | 3K |
| CAN HMI | User interface CAN | 7K |
| CAN HMI | User interface CAN | 11K |
| CAN HMI | User interface CAN | 15K |
| CAN HMI | User interface CAN | 19K |
| CAN HMI | User interface CAN | 23K |
| CAN HMI | User interface CAN | 27K |
| CAN HMI | User interface CAN | 31K |
| CAN HMI | User interface CAN | 36K |
| Code M177 | V8 spark-ignition engine M177 - AMG | 29C |
| Code RY6 | Tire pressure monitor | 21C |
| N145/1 | Drive unit control unit | 32L |
| N2/10 | Supplemental restraint system control unit | 7L |
| N3/2 | Electronic differential control unit | 36L |
| N73 | Electronic ignition switch control unit | 3L |
| N88 | Tire pressure monitor control unit | 23L |
| W29/2 | Right A-pillar ground point | 4H |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 27G |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 35G |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 4A |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 12A |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 20A |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 28A |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 35A |
| X92/3 | Vehicle frame electrical connector | 22G |
| Z6/30z9 | Ground connection connector sleeve | 4E |
