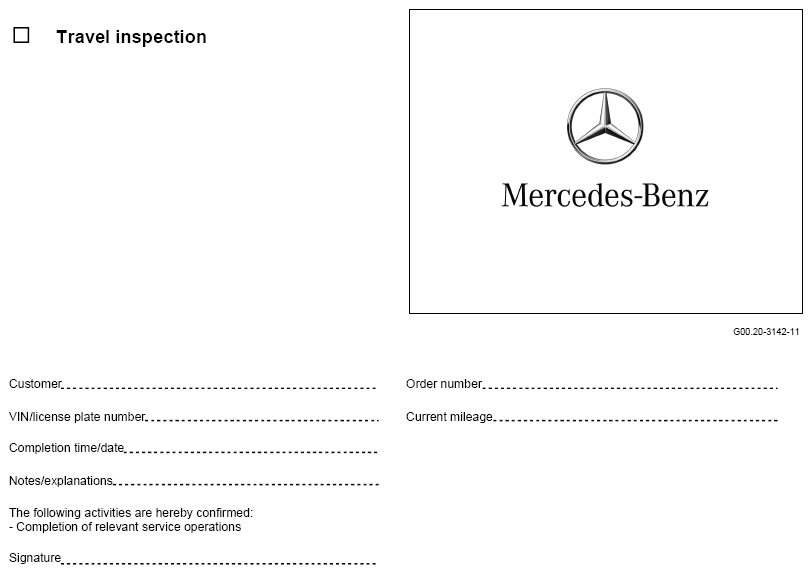

Travel Inspection - AP00.20-P-0080A

Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 463

Courtesy of MERCEDES-BENZ USA

T		Input condition not OK:	ⓧ
Completed
√
↓			↓
□	Brake system  Perform brake test and enter result in table.	Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, Model 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245 (except 245.286), 246, 247, 251, 253, 257, 290, 292, 293 Model 463 as of Model year 2019	◦	AP42.00-P-4290BA
		Model 223	◦	AP42.00-P-4290BS
		Model 463 up to Model year 2019	◦	AP42.00-P-4290G
□	Vehicle exterior  Check condition of vehicle exterior.		◦	AP60.00-P-6048U
□	Check condition of windshield.		◦	AP67.10-P-6750A
□	Check condition of wiper blades.	Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, Model 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293, Model 463	◦	AP82.30-P-8253G
		Model 223		AP82.30-P-8253A
◦	Check exterior lighting for proper operation.	Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, Model 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293, Model 463	◦	AP82.10-P-8252EW
		Model 223		AP82.10-P-8252A
□	Battery  Check condition of battery.	Only on customer request. Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, Model 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245 (except 245.286), 246, 247, 251, 253, 257, 290, 292, 293, Model 463 After obtaining special order.	◦	AP54.10-P-5449U
□	Vehicle interior  Check windshield wipers, windshield washer system and, if necessary, headlamp	cleaning system for proper operation.	◦	AP82.30-P-8249U
□	Engine compartment  Check all visible parts in engine compartment for damage and leaks.	Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293, Model 463 Model 117, 156, 169, 176, 242, 245, 246	◦	AP00.20-P-0055AK
		Model 164, 171, 172, 197.3/4, 203, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 231, 251		AP00.20-P-0055EW
		Model 166, 292		AP00.20-P-0055D
		Model 167		AP00.20-P-0055H
		Model 118, 177, 247		AP00.20-P-0055I
		Model 190		AP00.20-P-0055B
		Model 213, 238, 253 (except 253.99), 257, 290		AP00.20-P-0055E
		Model 205		AP00.20-P-0055C
		Model 217, 222		AP00.20-P-0055A
		Model 223		AP00.20-P-0055K
		Model 253.99		AP00.20-P-0055G
		Model 293		AP00.20-P-0055J
		Model 463 up to Model year 2019		AP00.20-P-0055F
		Model 463 as of Model year 2019		AP00.20-P-0055GA
□	Check engine oil level.	Engine 111, 112, 113, 133, 139, 152, 156, 157, 159, 176, 177, 178, 256, 260, 264, 266, 270, 271, 272, 273, 274, 275, 276, 277, 278, 279, 282, 607, 608, 611, 612, 626, 628, 629, 640, 642, 646, 647, 648, 651, 654, 656	◦	AP18.00-P-1848U
◦	Check main circuit coolant level in expansion reservoir.		◦	AP20.30-P-2049U
□	Brake system: Check fluid level.		◦	AP42.10-P-4247U
□	Windshield washer system: Check/correct fluid level.	When using cleaning compounds for summer/winter, and depending on the ambient temperature, observe the mixing ratio.		AP82.35-P-8249U
□	Underside of vehicle  Check condition of vehicle underside.		◦	AP60.00-P-6049U
□	Tires  Correct tire pressure and enter set tire pressure in table.	Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, Model 463 Model 117, 118, 156, 164, 166, 167, 169, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 as of Model year 2019	◦	AP40.15-P-4061A
		Model 171, 203, 209, 211, 219		AP40.15-P-4061B
		Model 223		AP40.15-P-4061D
		Model 463 up to Model year 2019		AP40.15-P-4060G
□	Trunk  Check/correct spare wheel tire pressure and enter set tire pressure in table.	Vehicle with spare wheel. Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, Model 463 Model 117, 118, 156, 164, 166, 167, 169, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 as of Model year 2019	◦	AP40.15-P-4061A
		Model 171, 203, 209, 211, 219		AP40.15-P-4061B
		Model 223		AP40.15-P-4061D
		Model 463 up to Model year 2019		AP40.15-P-4060G
□	Check TIREFIT tire sealant.	Vehicle with TIREFIT. Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 223, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, Model 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 with code LQ0 (G650 Landaulet) Model 463 with code MUK2 (USA or Canada vehicle Model designation) Model 463 with code ZQ0 (G 500 4x42 )	◦	AP40.10-P-4054R
		Model 223 Enter expiration date here:		AP40.10-P-4054A
		Replace TIREFIT, invoice as additional operation.
