Removing And Installing Apron Lighting - AR82.25-P-4729GW
Model 463
as of model year 2013 up to model year 2019
/FACELIFT 2012
| Remove/install | |||
| 1 | Remove mirror glass | Remove/install mirror glass | AR88.70-P-9020GW |

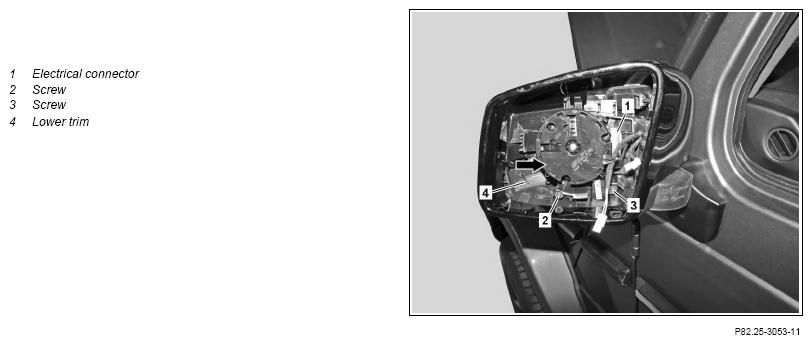

| 2 | Expose and disconnect electrical connector (1) | ||
| 3 | Remove screw/bolts (2, 3) | ||

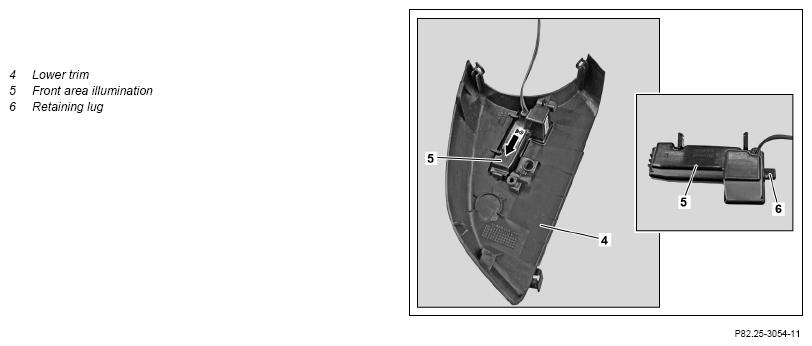

| 4 | Unclip lower trim (4) | ||
| 5 | Unclip and remove front area illumination (5) | Remove front area illumination (5) in direction of arrow. Otherwise, the retaining lug (6) will be damaged. |
|
| 6 | Install in the reverse order |
